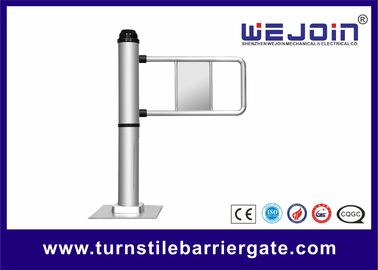

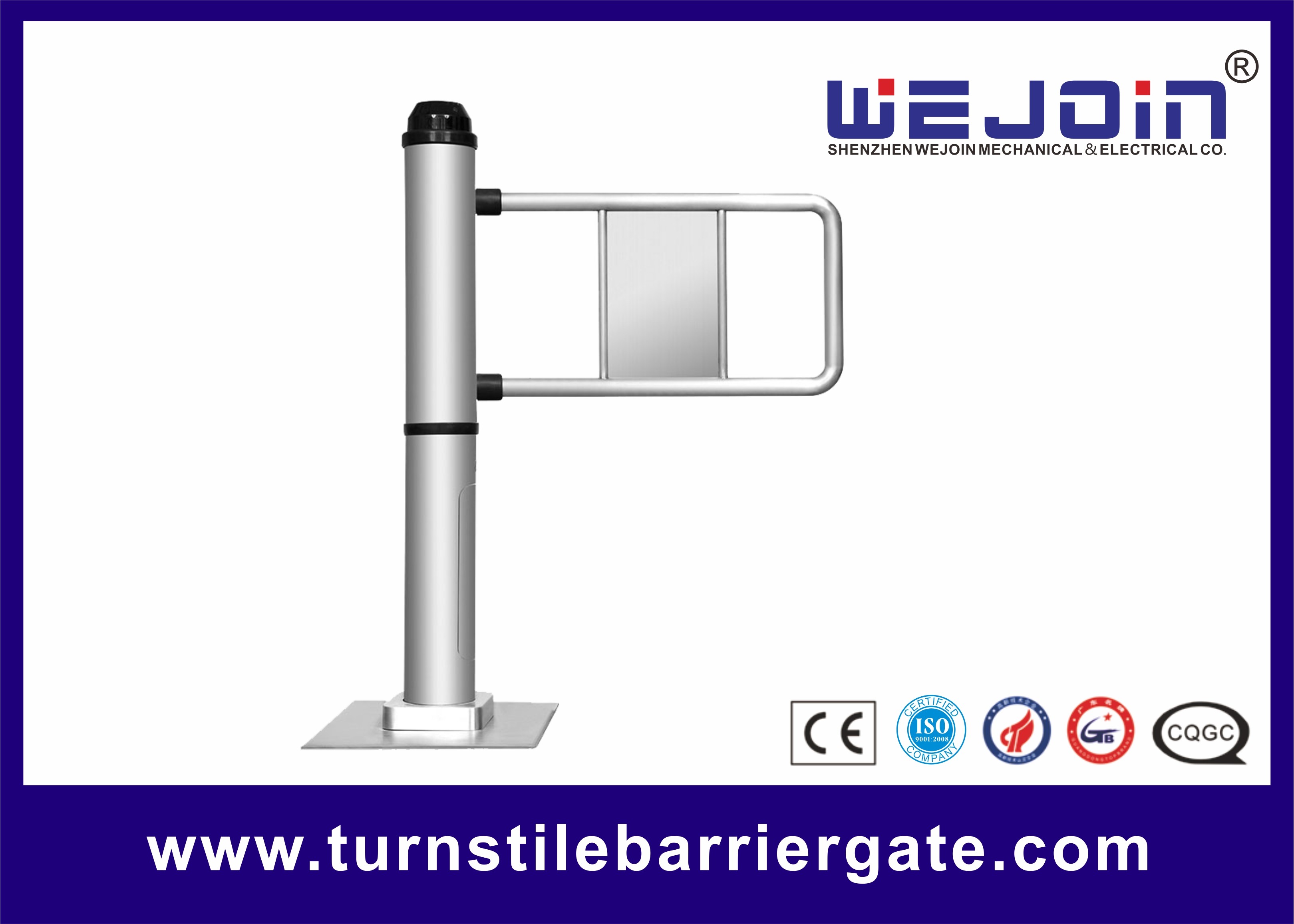

Waist High Turnstyle Entrance Swing Security Gates Compatible With Ic / Id / Bar Code

Waist High Turnstyle Entrance Swing Security Gates Compatible With Ic / Id / Bar Code

Product Details:

Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE;ISO
Model Number: WJTB101

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD+450---500+ a set
Packaging Details: wooden packages
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 5000+set+per month
Contact Now
Detailed Product Description
Housing Material: 304 Stainless Steel Width Length: 500--900MM
Leading Time: 3-5 Working Days After Payment Received Motor Material: Steel And Aluminum Alloy
Motor Type: Brush DC24v Transit Speed: 30-40 Persons/min
Power Supply: AC110V/220V,50/60Hz



Waist High Turnstyle Entrance Swing Security Gates Compatible With Ic / Id / Bar Code







Name: 110/220V Access Control Swing Barrier Gate With Slim And Unique Housing Design



Quick Detail



Model:WJTB101

Application:Access control System

Housing Material:304 Stainless Steel

Feature: Compatible with IC/ID/bar code,etc

Voltage:AC110V/220V

Certificate:ISO,CE



Feature and Function



1.A compact electric and mechanical design with unique drive which ensure product durability and silent

operation, and its self-lock mechanism can also well protect the access control security.





2.Automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



3. Input interface which are available for dry contact and switch signal connections. So customers can

integrate the swing barrier with different system, like card reader, ticket system, token system etc.







4. Auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will

cancel the order and the auto-delay closing time is adjustable.





5. Audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.





6. It can be integrated with fire control device, which allow the release on emergency for security

consideration.









Specifications

                                     Model Item



Swing Barrier Mechanism

Mechanism Dimension

108*450mm

Arm Length(Optional)

500-900mm

Motor Material

Steel and Aluminum Alloy

Driving Motor

24V BrushB DC Motor

Swing Direction

Single or Bidirectional Operation are Available

Input Interface

Dry Contact and Switch Signal Connection

Time for Opening or Closing

1 second

Starting time after power on

3 seconds

Transit Speed

30~40 persons/min

Working Environment

Indoor / Outdoor (Shelter)

Working Temperature

—25°C~50°C

Relative Humidity

≤90%, no condensation



Wooden packing
