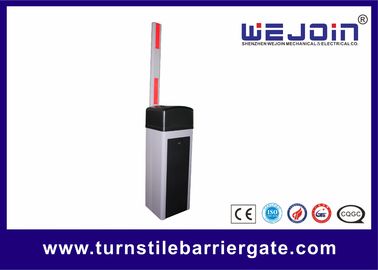

Straight Vehicle Barrier Gates , Security Boom Barrier Steel Casting Design

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ801
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Force: Heavy Duty Motor: Die Casting Aluminum Alloy
Speed: 1.5s,3s,6s Material: Steel
Power: 80W Standard Color: Yellow; Orange; Gray
Delivery: 3~5 Working Days After Payment Received Voltage: AC220V; AC110V
High Light:

auto barrier gate system

,

car park barriers


Product Description



Straight Vehicle Barrier Gates , Security Boom Barrier Steel Casting Design



Quick Detail





Name

Security Barrier Gate

Application

Parking System

Speed

1.5/3/6 second

Feature

Manual release

Rated Power

80W

Certificate

CE, ISO, SGS

Net Weight

50KG

Voltage

AC220V, AC110V







Functions & Features:





1. Wheel manual release.In case of power off,rotate the wheel manual release on the bottom of the motor to raise the boom manually.When power on,the motor will work normally.

2. Machine core with strong and double springs, make the machine core works more steadily.

3. Die-casting aluminum alloy motor,lrecise and good at thermal radiation.

4. Crank and rod structure makes the boom run placidly.

5. Double safety limit switches(photoelectricity limit switch and motor memory sensor)

6. Reversing on obstacle.

7. Auto-closing.

8. Interface for traffic light

9. Support the infrared photocell for anti-bumping function(oltional)

10. Traffic light interface(AC220V,can support lamp with 40w)

11.Wire control(switch signal)/Remote control(418MHZ)

12.Rs485 Communication module(optional)

13.Open,close control interface for parking system.

14.Provide limit state signal to parking system





Application:



Suitable for indoor as well as outdoor parking area


Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls,



hospitals, stadiums, business centers,etc.







Project Site



 Straight Vehicle Barrier Gates , Security Boom Barrier Steel Casting Design 0
