Quick Detail
|
Name |

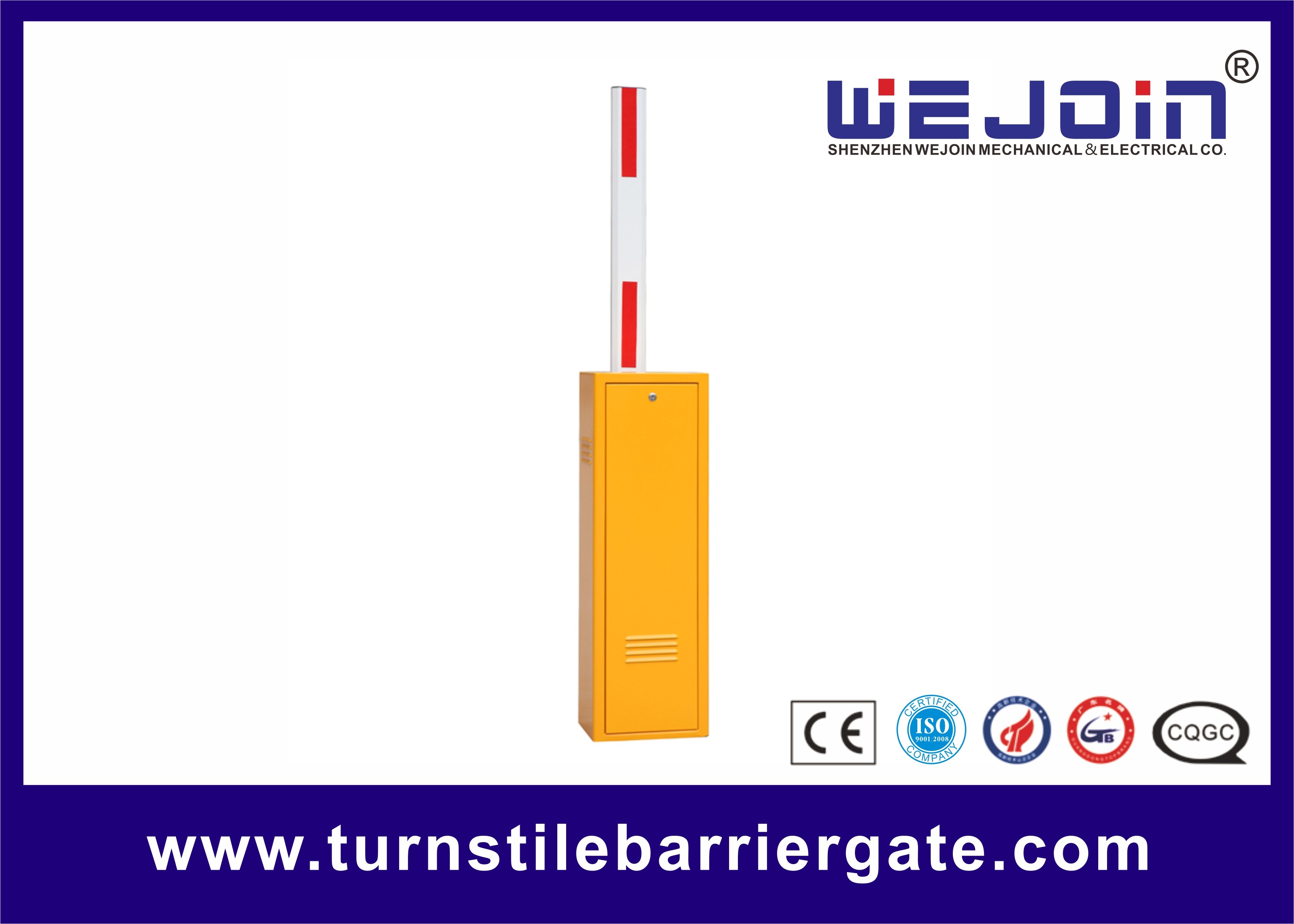

Economic Barrier Gate |
Application |
Parking System |
|
Speed |
1s/3s,3/6s |
Feature |
Manual release |
|
Rated Power |
80W |
Certificate |
CE, ISO |
|
Net Weight |
40KG |
Voltage |
AC220V, AC110V |
Functions & Features:
1. Wheel manual release.In case of power off,rotate the wheel manual release on the bottom of the motor to raise the boom manually.When power on,the motor will work normally.
2. Machine core with strong and double springs, make the machine core works more steadily.
3. Die-casting aluminum alloy motor,lrecise and good at thermal radiation.
4. Crank and rod structure makes the boom run placidly.
5. Double safety limit switches(photoelectricity limit switch and motor memory sensor)
6. Reversing on obstacle.
7. Auto-closing.
8. Interface for traffic light
9. Support the infrared photocell for anti-bumping function(oltional)
10. Traffic light interface(AC220V,can support lamp with 40w)
11.Wire control(switch signal)/Remote control(418MHZ)
12.Rs485 Communication module(optional)
13.Open,close control interface for parking system.
14.Provide limit state signal to parking system
Application:
Suitable for indoor as well as outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls,
hospitals, stadiums, business centers,etc.
Advantage&diadvantage
1.For one barrier,you can have two installed direction(both side of the shaft can install the arm holder,just need to change the position of the arm holder)
2.For one barrier,you can have two speed(no need to change the motor),for example,if you want faster barrier,you can choose 1.5s/3s motor,and you can also set up speed is 1.5s,and down speed is 3,or both up and down speed is 1.5s or 3s,if you want slower barrier,you can choose 3s/6s motor,the same function as 1.5s/3s motor.
3.The motor coil use copper wire,and this machine core is more stable
