Heavy Duty Parking Barrier Gate , Automatic Boom Barrier With Led Screen

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ501
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment being received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Force: Heavy Duty Motor: Die Casting Aluminum Alloy
Speed: 1s,1.8s,3s,6s Housing: Steel
Power: 80W Max Boom Length: 6m
High Light:

auto barrier gate system

,

car park barriers


Product Description


Heavy Duty Parking Barrier Gate , Automatic Boom Barrier With Led Screen




Application



Suitable for indoor as well as outdoor parking area
Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access

shopping malls, hospitals, stadiums, business centers,etc.



Technical Specification



Description

Parameter

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

60kgs

Arm Speed

1s, 1.8s, 3s, 6s

Max boom length

6 meters



Ordering Information





Model No. Open/Close Speed Max Boom Length Boom Type
WJDZ50116 6 seconds 6m Straight boom
WJDZ50113 3 seconds 4.5m Straight boom
WJDZ50111 1 second 3m Straight boom
WJDZ50126 6 seconds 5m 90 degree, Articulated boom
WJDZ50123 3 seconds 3m 90 degree, Articulated boom
WJDZ50136 6 seconds 5m 180 degree, Articulated boom
WJDZ50133 3 seconds 3m 180 degree, Articulated boom
WJDZ50146 6 seconds 4.5m Two-level, fence boom
WJDZ50156 6 seconds 4m Three level, fence boom







Functions & Features:



1. New design with LED display screen, available for many kinds of fonts, such as Chinese, English and with Red & Green lights, when the boom open up to 90 degrees, green light flashing,, when the boom in the process of operation, red light flashing.

2. Safe---the barrier will automatically go back when meet obstacles during closing.

3, Swing Out---Arm will swing out when hit directly by vehicle (only 1 second model ) to avoid further damage on the vehicle.

4. Clutch key can be used to release the clutch when power off.

5. Fan cooling machine reduces the motor temperature by high frequency using, and never get over-heated. Unique temperature calefaction design for low temperature using prevents freezing in cold weather.

6. Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate working life.

7. Thimble type motor worm design for preventing plugging up in using.

8. Balance spring--- no noise and easy adjusting.

9. Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.

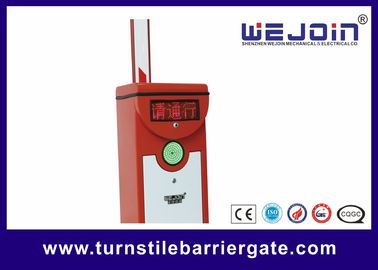

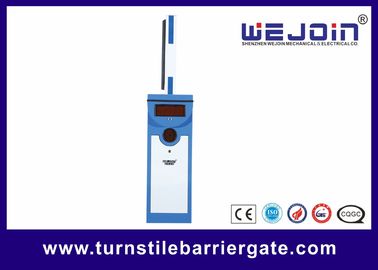

Heavy Duty Parking Barrier Gate , Automatic Boom Barrier With Led Screen 0Heavy Duty Parking Barrier Gate , Automatic Boom Barrier With Led Screen 1





Basic Features:



    AC motor is more powerful and no maintenance.
    Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1 second to 6 seconds.
    All the operation process is soft without any noise and shaking.
    Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.
    Green light and red light are used inside for indication the position of the boom.
