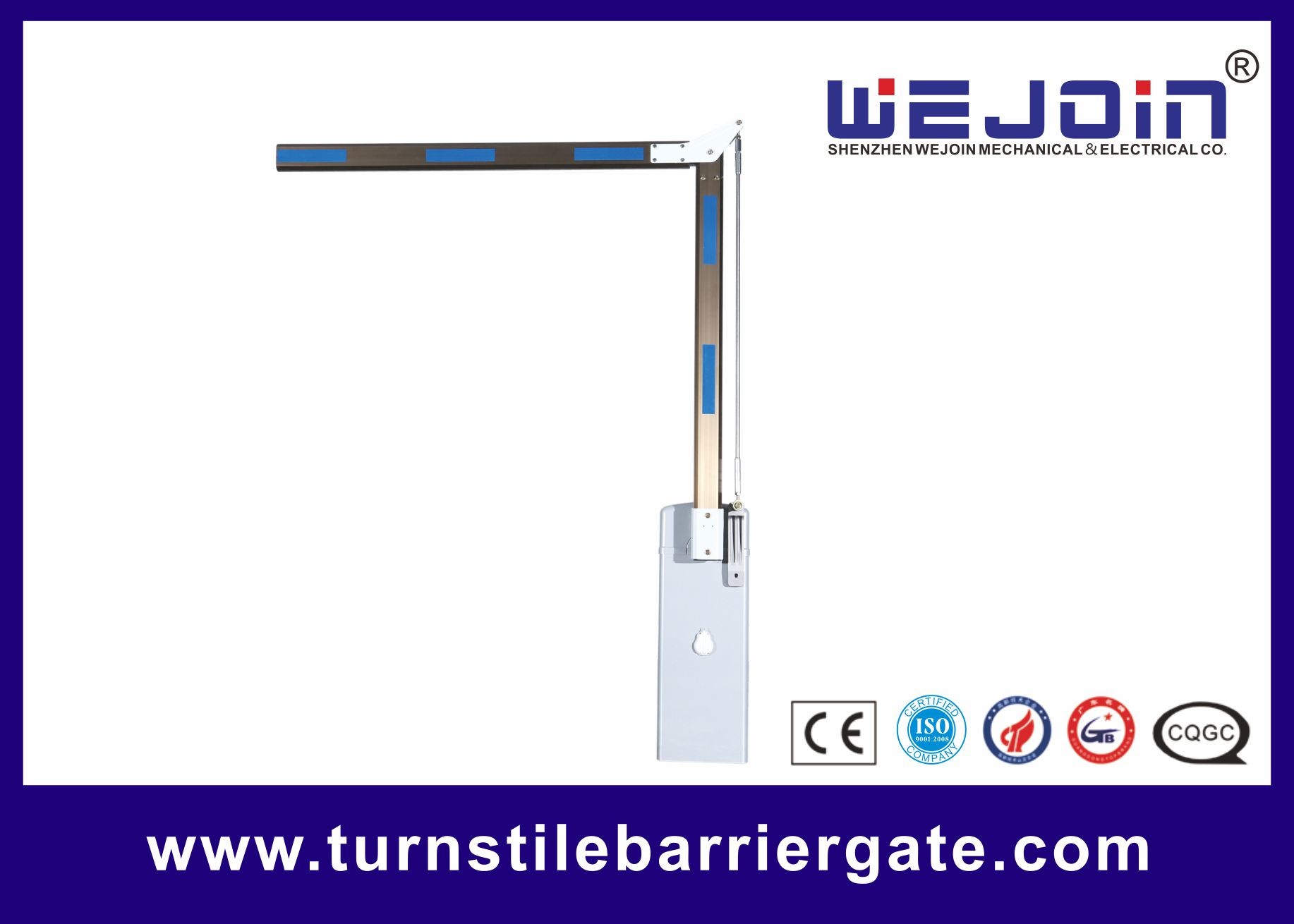

High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJDZ801
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 5000 units/weeke
Detail Information
Motor: Die Casting Aluminum Alloy Speed: 1.5,3s,6s
Power: 80w Standard Color: Gold,Silver,Orange,Black+Jacinth,Dark Yellow
Delivery: 3~5 Working Days After Payment Received Voltage: AC220V; AC110V
High Light:

automatic barrier gate system

,

electric barrier gate


Product Description

High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building



Quick Detail:

  1. Name: Boom barrier gate

  2. Application: Parking system

  3. Speed:1.5/3/6 second

  4. Feature: Limte state signal

  5. Rated Power:80W

  6. Certificate:CE, ISO,

  7. Net Weight:50KG

  8. Voltage:AC220V, AC110V



Description:

Model Selection and Differences

Model(WJDZ) Item

801-11

801-13

801-16

801-23

801-26

801-33

801-36

801-46

801-56

Running Time

1.5s

3s

6s

3s

6s

3s

6s

6s

6s

Boom Type

Straight

90°folding

180°folding

2fencing

3fencing

Max Boom Length

3m

4.5m

6m

3m

5m

3m

5m

4.5m

4m

Boom dimension(W*H)

45*80mm

45*100mm

Boom weight

3kg

4.5kg

6kg

6.5kg

8kg

9kg

11kg

7kg

7kg

Voltage

220V/110V

Motor voltage

220v

Frenquency

50/60HZ

Protection Grade

IP44

Working Temperature

-35℃~+60℃

Power

80w



Functions & Features:

1. Open the barrier gate by motor wheel when power off and automatic locking when power on

2. Balanced boom running with a motor transmission of cranks and shafts

3. Boom with protective rubber band

4. Interface for traffic light

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well-integrated with car parking system equipments, with wire control (push button)

8. Offering dry contact signal for car parking system (COM, NC, NO)

9. Auto-reverse when the boom meets obstruction

10. Auto-delay when closing (adjustable)

11. Remote control frequency: 315 MHz, 418MHz, 433MHz

12. Remote control to operate the barrier gate

13. Wheel manual release. In case of power off,rotate the wheel manual release on the bottom of the motor to raise the boom manually,when power on,the motor will work normally.



Applications:

Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.



Specifications

Model

WJDZ801

Working Temperature

-35℃~+60℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

50kgs

Speed

1.5S, 3S, 6S

Max boom length

6 meters
