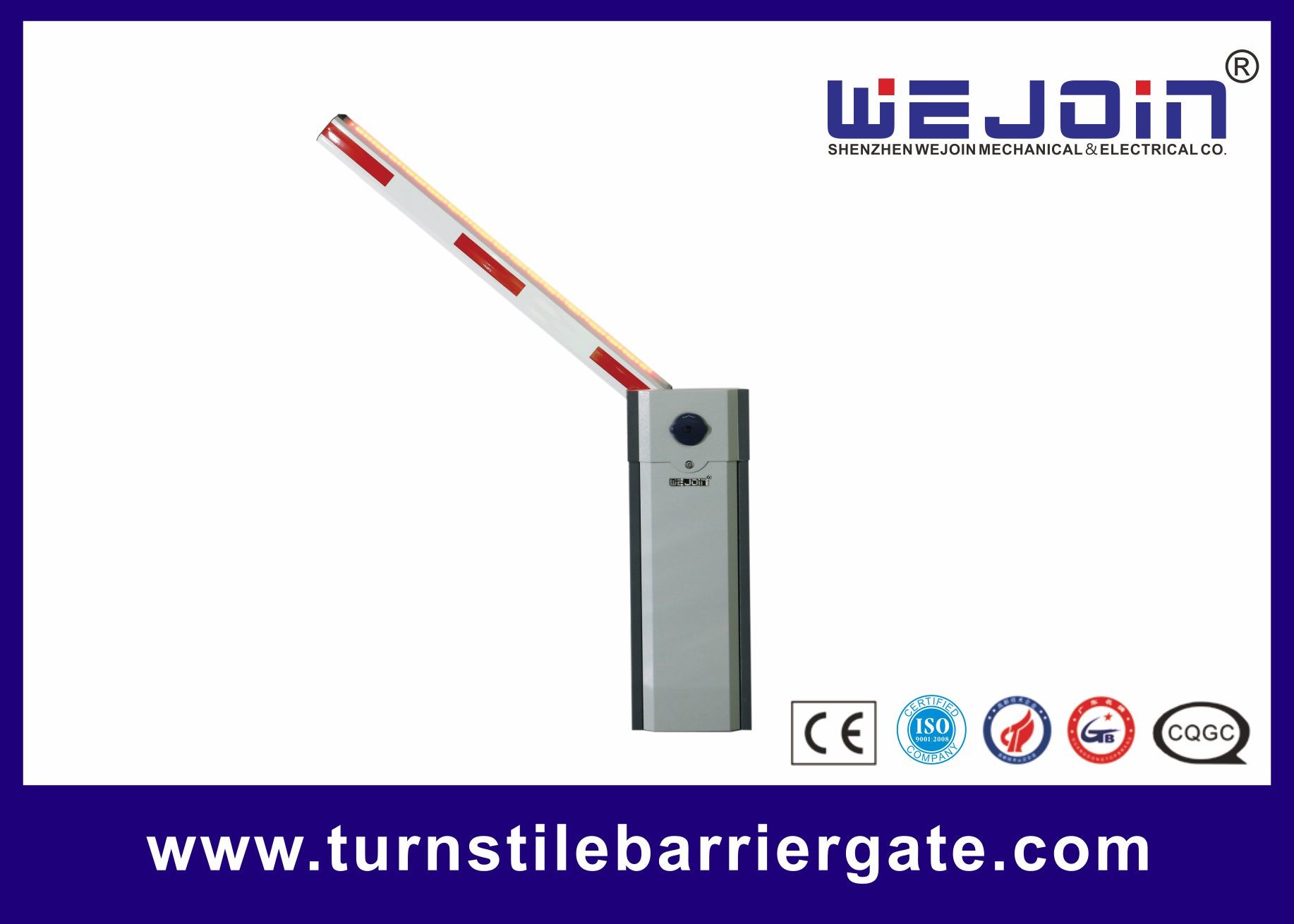

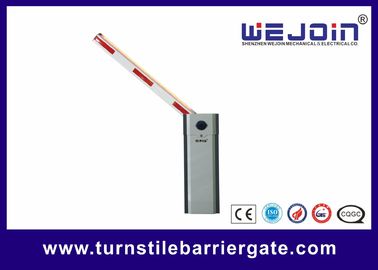

LED arm automatic barrier gate system 1.5S~4S adjustable intelligent parking

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: CE, ISO
Model Number: WJDZ101P
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1.5S~4S Adjustable Color: Optional
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Boom Type: Straight Arm; Folding Arm; Fence Arm,Telescopic Arm COM Interface: RS485
High Light:

automatic car park barriers


security barrier gate

Product Description

DZ01P Conventional Variable Frequency Auto Barrier Gate System with Led arm


Functions & Features:

1.New deceleration device,using CNC comprehensive precision process;reducing notice,preventing oil spills,better working,more convenient maintenance.

2.Cranks of main power output,use cast steel,swing crank uses strengthen design,the working life can be 6 million times during normal maintenance.Daily working times(non-stop) can be over 60000.

3.The motor well adapts to high and low temperature(-35℃~85℃)

4.New digital limit technology,free adjusting,precise control;Buffer and slow down when arem goes to limit position,working is more stably.

5.More powerful control system,microcomputer settings,arm up angle adjustable,counting,auto closing time adjustable,sensibility of reversing on obstacle adjustable,RS485 communication,working speed adjustable,and etc.


Specifications :



Working Temperature



220V±10%, 110V±10%, 50/60HZ

Rated power


Relative humidity


Remote control distance


Net weight



1.5s~4s adjustable

Parameter choose

direction,length,style of arm


Why to choose WEJOIN High Speed Barrier Gate?

1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.

2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.


LED arm automatic barrier gate system 1.5S~4S adjustable intelligent parking 0
