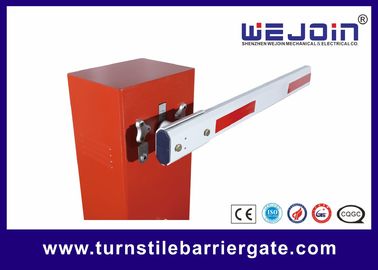

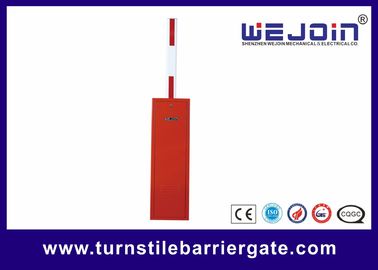

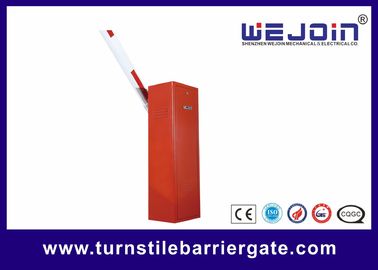

Powerful Double Motor Electronic Barrier Gates , Arm Security Gates For Parking Lots

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO
Model Number: WJDZ701
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton
Delivery Time: 3~7 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/MONTH
Detail Information
Color: Optional Power Supply: AC220V; AV110V
Net Weight: 39kg Gross Weight: 44kg
Boom Dimension: 45*100mm Rated Power: 120W
High Light:

automatic car park barriers

,

automatic parking barrier


Product Description



Powerful Double Motor Electronic Barrier Gates , Arm Security Gates For Parking Lots



Description:





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ60116 Straight boom 4.5m 6 seconds
WJDZ60113 Straight boom 4m 3 seconds
WJDZ60126 90 degree, Articulated boom 4m 6 seconds
WJDZ60123 90 degree, Articulated boom 3m 3 seconds
WJDZ60136 180 degree, Articulated boom 4m 6 seconds
WJDZ60133 180 degree, Articulated boom 3m 3 seconds
WJDZ60146 Two-level, fence boom 3.5m 6 seconds
WJDZ60156 Three-level, fence boom 3m 6 seconds





Technical Data





Name Barrier Gate Application Parking System
Speed 3/6 second Max Boom Length 6m
Power Supply AC220V/AC110V Rated Power 120W
Motor Rotational Speed 1400rpm Protection Degree IP44
Working Temperature -35℃~75℃ Humidity ≤90%
Remote Control Distance ≤50m Boom Dimension 45*100mm
Net Weight 39kg Gross Weight 44kg
Certificate CE/ISO Boom Type Octagonal boom





Functions & Features:





⑴ Auto closing
⑵ Thermal radiates rapidly, no thermal protection

⑶ No need to change the balance spring when changing the booms

⑷ Adopts the 3rd generation WEJOIN machine core

.⑸ Supports the infrared photocell for anti-bumping function (optional)
⑹. Supports the external and internal vehicle loop detector (optional)
⑺ Advanced manual release
⑻. RS485 communication module (optional)
⑼ Boom can rise and fall on left/right side by setting on the same machine
⑽ Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
⑾ Special art and craft makes out the most modernized and fashionable housing
⑿. Safety photo electricity limit switch





Applications:





Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.









Why to choose WEJOIN Bi-directional Barrier Gate?





1. Barrier Gate with aluminum alloy housing is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.

2. Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times.

3. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.





Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.





Machine Core
