Pedestrian Security Gates Automatic Turnstile Full Height With Memory Function

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO
Model Number: WJFT602
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/week
Detail Information
Housing Material: 304 / 202 / Cold Rolling Iron Painted Type: Automatic Turnstile
Access Control System: Yes Options: Single / Double Direction
Package: Wooden Housing Thick: 2mm
Time For Opening: 0.2s Working Temperature: -10℃~50℃
High Light:

access control barrier


automatic systems turnstiles

Product Description

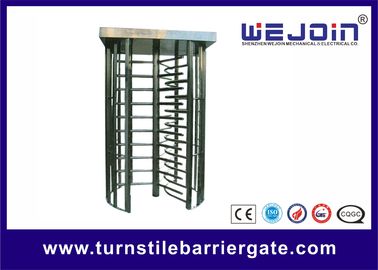

Pedestrian Security Gates Automatic Turnstile Full Height With Memory Function


Turnstile introduction:


1) The full-high turnstile is designed to provide unsupervised access control for office or building. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested. The turnstile can also work with push button, fingerprint and face recognition access control system.
2) The full-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile. The intermeshing of the left and right-hand rotors allow reduction in overall width from 2.8m to 2.2m with no reduction of passage space. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions. The complete stainless

steel construction is suited for interior or exterior application.


Functions& Features:

1.Running stable without noise and mechanical impact

2. The passing person number of the persons can be set


3.Several ways of working molds for you to choose


4.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface


5. The function with or without card-reading memory can be set according to your demand.


6. Compatible with several control devices such as IC, ID, magcard, bar code and so on.


7. Unlocking is quick and reliable.


8. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.


9. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.


10. The center rotor will be set free (default) or locked (optional) automatically when the power is off.


11. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.


12. Counting Function of the controller, LED figure display function (optional)

13. Memory Function attached in the controller



Model WJFT601 WJFT602 WJFT610 WJFT611
Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing 1630×1500×2300 1400× 2800× 2150×
(L×W×H mm) 1200×2300 1813×2400 1260×2300
Length of Pole 610mm 470mm 610mm 470mm
(out of framework)
Net Weight 170kg 250kg 650kg 560kg
Max Load-bearing of Pole 80kg 30kg 80kg 30kg
Driving Force of Pole 3kg
Produce Processing Laser cutting fully controlled by computer
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Transmission of Pole Digital Transmission
Light Indicator Direction indicating
Rotating Direction Single Direction, Double Direction (optional)
Time for Opening 0.2 second
Communication Interface Standard RS485 (distance less than 1200 meters)
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature -10°C~50°C
Relative Humidity ≤90%, no condensation
