Portable Single Bridge type Swing Barrier Gate for Pedestrian , Supermarket Swing Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB106
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden package
Delivery Time: 5-10 days
Payment Terms: L/C, Western Union
Supply Ability: 50PCS/week
Detail Information
Arm Length: 500~900mm Housing Material: 304 Stainless Steel
Relative Humidity: ≤95% Protection Grade: IP32
Transit Speed: Transit Speed Motor Type: Brush DC24V
High Light:

waist high turnstiles

,

pedestrian gate access control


Product Description

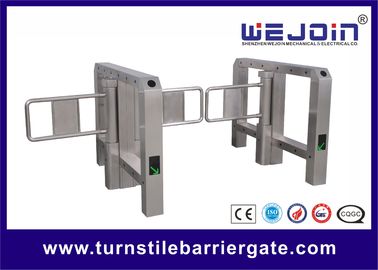

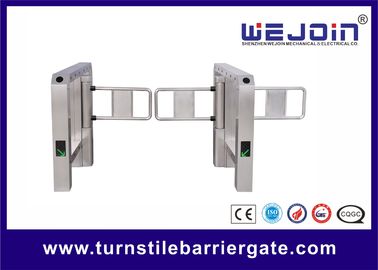

Portable Single Bridge type Swing Barrier Gate for Pedestrian , Supermarket Swing Gate





Quick Detail:



  • Name: Swing Barrier gate
  • Application: Indoor and outdoor(shelter)
  • Feature: Auto-reverse passing
  • Relative hunmidity:≤90%,with no condensation
  • Motor material: Ateel and aluminum alloy
  • Certificate: CE,ISO
  • Motor type: DC24V,brush
  • Protect grade: IP32





Description:





1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation



3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So customers can connected the swing barrier with different system, like card reader, ticket system, token system and finger printer, etc.



4. Fourthly,  WEJOIN swing barriers input interface available for dry contact and switch signal connection



5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.



6. Lastly,WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.





Specifications





Model

Item

Swing Barrier Mechanism
Arm Length(Optional) 500-900mm
Mechanism Dimension 108*450mm
 Swing Direction double direction or single
 Material  Steel and Aluminum Alloy
Driving Motor DC 24V , brush
 Input Interface Dry Contact and Switch Signal Connection
Voltage Motro 220V±15% ,110V±15%
 Starting time after power on  3s
Time for Opening or Closing 1s
Working Temperature  —25°C~50°C
Working Environment Indoor / Outdoor (Shelter)
Transit Speed 30~40 persons/min
Relative Humidity ≤90%, with no condensation
