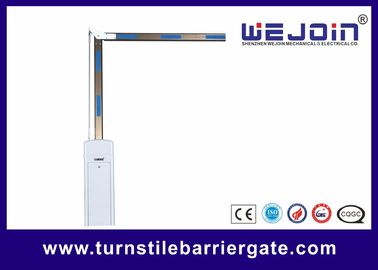

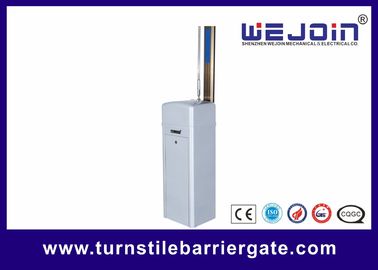

Name: Parking Arm Road Automatic Vehicle Barriers with Straight Folding Boom
Brand: Shenzhen Wejoin Mechanical & Electrical Co.
SKU: WJDZ801
Price: 320.00 USD
Availability: InStock

Parking Arm Road Automatic Vehicle Barriers with Straight Folding Boom

1 set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Function: Automatic Barrier

Boom Selection: Straight; Folding Boom; Fence Boom

Mechanism Material: Die-Casting Aluminum Alloy

Color: Optional

Loop Detector Available: Yes

Photocell: Yes

Warranty Period: 1 Year

Highlight:

parking lot arm gate

car park barriers

Basic Infomation

Place of Origin: CHINA

Brand Name: WEJOIN

Certification: CE ISO SGS

Model Number: WJDZ801

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 3-7 days

Payment Terms: T/T, Western Union

Supply Ability: 10000 sets/month

Gallery

Parking Arm Road Automatic Vehicle Barriers with Straight Folding Boom

Product Description

Parking Arm Road Automatic Vehicle Barriers with Straight Folding Boom

Functions & Features

1. Open the gate by motor wheel when power off and automatic locking when power on

2. Balance boom running with a motor transmission of cranks and shafts

3. Remote control to operate the barrier gate

4. Auto reverses when the boom meets obstacles

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well integrated with car parking system equipments, with wire control (push button)

8. Interface for traffic light

9. Installation on both sides (left or light)

10. Auto-delay when closing (adjustable)

11. Boom with protective rubber band

Technical Data

Model Item	80111	801-13	801-16	801-23	801-26	801-33	801-36	801-46	801-56
Running time	1.5sec	3sec	6sec	3sec	6sec	3sec	6sec	6sec	6sec
Boom type	straight			90 degree folding		180 degree folding		2fencing	3fencing
Max boon length	3M	4.5M	6M	3M	5M	3M	5M	4.5M	4M
Boom dimension	45*80mm					45*100mm
Boom weight	3kg	4.5 kg	6 kg	6.5 kg	8 kg	9 kg	11 kg	7 kg	7.5 kg
Voltage	AC220V±10%, AC110± 10%
Frequency	50/60HZ
Motor voltage	220V
Power working temperature	80W
working temperature	-35centigrade～+60centigrade
Protection degree	IP44

Housing and mechanism:

Barrier case size:

Tag:

automatic barrier gate system

electric barrier gate

vehicle access control barriers
