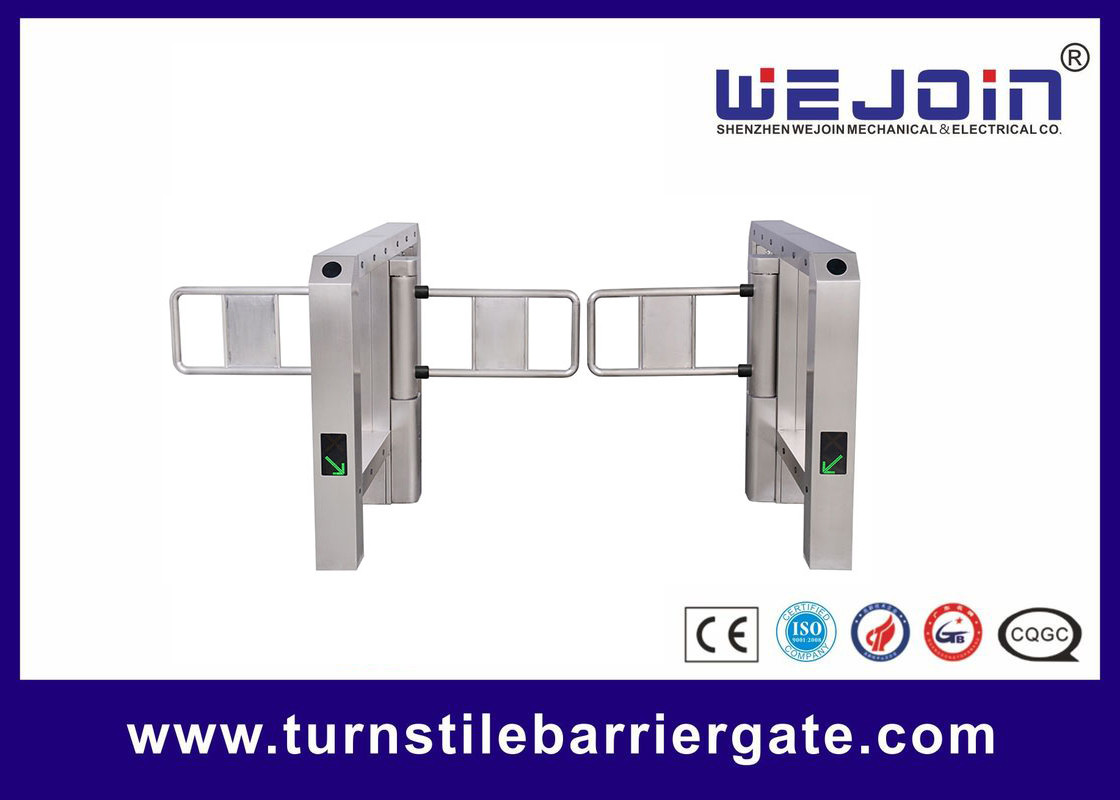

Electronic Access Control Turnstile Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB101
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 5-10 days
Payment Terms: L/C, Western Union
Supply Ability: 50PCS/week
Contact Now
Detail Information
Housing Material: Stainless Steel 304 Arm Length: 500~900mm
Motor Material: Steel And Aluminum Alloy Motor Type: Brush DC24V
Relative Humidity: ≤95% Transit Speed: 30~40 Persons/min

Product Description

Outdoor Electronic Access Control Turnstile Gate For Facility Entrance Control
NO Voice Anti collision Brushless Motor excellent design building access control swing barrier gate
Swing Barrier gate Functions and features
1. a compact electro-mechanical design with an exquisite rotating plate and self-lock mechanism.
2. automatic detection for malfunction
3. input interface for dry contact and switch signal available for Simple integration of all common access control system.
4. adjustable auto-delay closing
5. infrared photocells for safety access
6. alarm for unauthorized access and no access against passenger flow
7. anti-reversing passing
8. auto closing when power on
9. auto open and free access when power off
10. adjustable access directions
11. emergency interface available
12. traffic light indicating passenger access


Swing Barrier gate Description:
1.WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation and self-lock mechanism can also well protect the access control security.
2.WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.anti-reversing passing function
3.WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, bus station ,token system etc.
4.WEJOIN swing barriers have auto delay closing function, Alarm for unauthorized access and no access against passenger flow.
5.WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can ensure the entrance security.
6.WEJOIN swing barriers input interface available for dry contact and switch signal connection
Swing Barrier gate Quick Detail:

  • Name: Swing Barrier gate

  • Voltage: 110V/220V

  • Application: Park,shopping mall and playground

  • Feature: Adjustable access directions

  • Motor type: DC24V,brush

  • Material: Stainless steel

  • Certificate: CE,ISO

Swing Barrier gate Specifications



Swing Barrier Mechanism

Mechanism Dimension


Arm Length(Optional)


Swing Direction

Single or Bidirectional Operation are Available


220V+-15% or 110V+-15%

Driving Motor

24V Brush DC Motor

Input Interface

Dry Contact and Switch Signal Connection

Motro Material

Steel and Aluminum Alloy

Working Temperature


Time for Opening or Closing

1 s

Transit Speed

30~40 persons/min

Working Environment

Indoor / Outdoor (Shelter)

Starting time after power on

3 s

Relative Humidity

≤90%, with no condensation

Electronic Access Control Turnstile Gate
