High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway

High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway

    • High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway
    • High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway
    • High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway
    • High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway
  • High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: WEJOIN
    Certification: CE,ISO,
    Model Number: WJDZ102

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Carton,wooden box
    Delivery Time: 1-20 days
    Payment Terms: T/T,L/C,Western Union
    Supply Ability: 5000 units/weeke
    Trade Terms: EXW,FOB,CIF
    Contact Now
    Detailed Product Description
    Material: Aluminium Alloy Work Speed: 1s//3s/6s
    Color: Orange Direction: Left Installed/Right Installed
    Voltage: 220V/110V Certificate: CE/ISO/

    Automated electronic Barrier Gate Arm With Die casting Aluminum Alloy Motor





    Model Selection and Differences



    Model Boom Shape Max Boom Length Speed

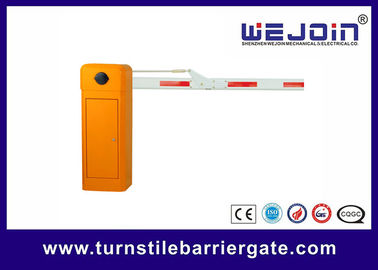

    WJDZ10216 Straight boom 6m 6 seconds
    WJDZ10213 Straight boom 4.5m 3 seconds
    WJDZ10211 Straight boom 3m 1 second

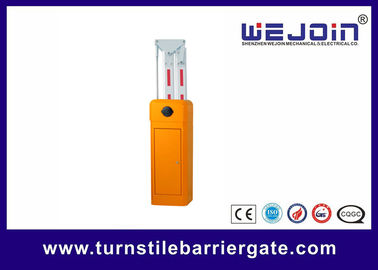

    WJDZ10226 90 degree, Articulated boom 5m 6 seconds
    WJDZ10223 90 degree, Articulated boom 3m 3 seconds
    WJDZ10236 180 degree, Articulated boom 5m 6 seconds
    WJDZ10233 180 degree, Articulated boom 3m 3 seconds

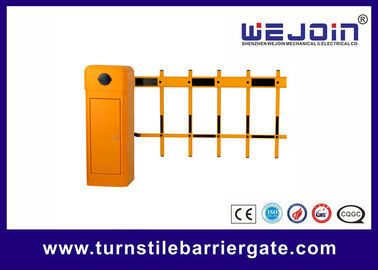

    WJDZ10246 Two-level, fence boom 4.5m 6 seconds

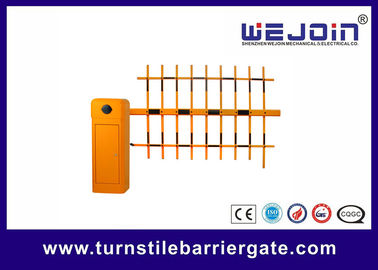

    WJDZ10256 Three level, fence boom 4m 6 seconds





    Applications:



    Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system, factory gate,bus station and so on.



    Specifications

    Model WJDZ102
    Working Temperature -40℃~+75℃
    Voltage 220V±10%, 110V±10%, 50/60HZ
    Rated power 80W
    Relative humidity ≤90%
    Remote control distance ≥30m
    Max boom length 8m
    Speed 1S,3s,6s
    Net weight 60kgs









    Communication with customers



    Q: What's WEJOIN monthly production capacity for barrier gate?

    A: 3000 units.



    Q: As for the over-heating problem of barrier gate

    A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



    Q: Sometimes, Why the barrier boom would open automatically?

    A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

    Q: What’s the remote control distance?

    A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters



    Functions & Features:

    1. Manual release device to operate the barrier when power failure

    2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

    3. Motor cooling fan to avoid the over-heating possibility

    4. Reversing on obstacle

    5. Auto closing realization through menu setting on the control panel

    6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

    7. RS485 Communication Module is compatible



    Why to choose WEJOIN Traffic Parking Boom Barrier Gate?



    1. Automatic Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on

    2.Automatic Boom Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

    3. Automatic Parking Boom Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

    4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

    5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.



    Quick Detail:

    1. Name: Vehicle access
    2. Application: Toll system
    3. Speed:1s,3s,6s
    4. Feature: Auto-closing
    5. Rated Power:80W
    6. Net Weight:60KG



    Description:



    High Speed Toll Gate Orange Automatic Boom Bararier 220V/110V For Highway
