|Material:||Aluminium Alloy||Work Speed:||1s//3s/6s|
|Color:||Orange||Direction:||Left Installed/Right Installed|
Automated electronic Barrier Gate Arm With Die casting Aluminum Alloy Motor
Model Selection and Differences
|Model||Boom Shape||Max Boom Length||Speed|

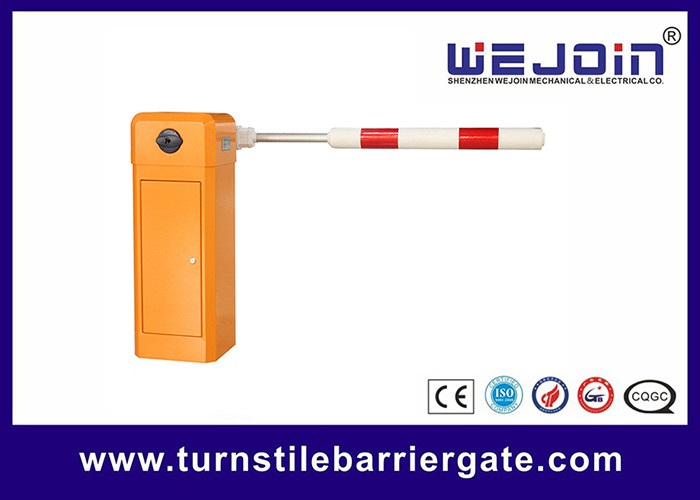

|WJDZ10216||Straight boom||6m||6 seconds|
|WJDZ10213||Straight boom||4.5m||3 seconds|
|WJDZ10211||Straight boom||3m||1 second|
|WJDZ10226||90 degree, Articulated boom||5m||6 seconds|
|WJDZ10223||90 degree, Articulated boom||3m||3 seconds|
|WJDZ10236||180 degree, Articulated boom||5m||6 seconds|
|WJDZ10233||180 degree, Articulated boom||3m||3 seconds|

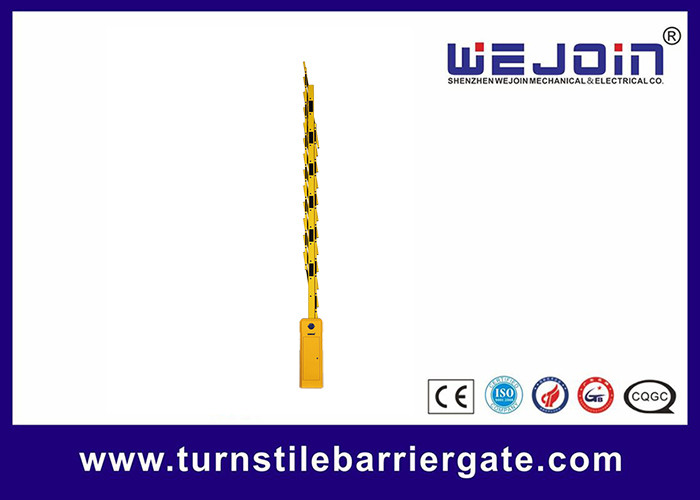

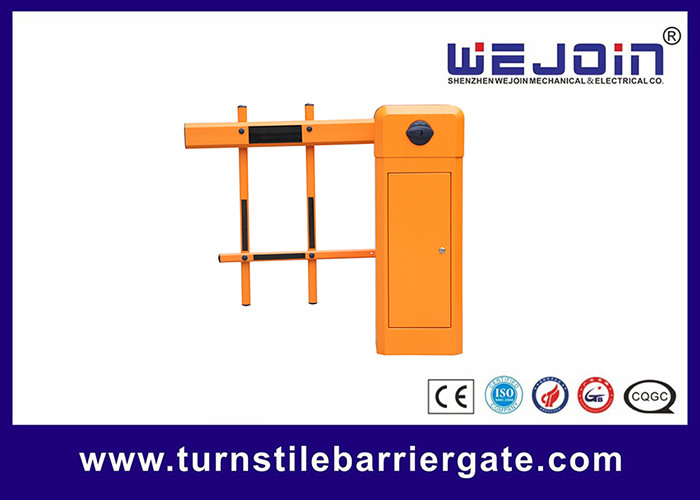

|WJDZ10246||Two-level, fence boom||4.5m||6 seconds|
|WJDZ10256||Three level, fence boom||4m||6 seconds|
|Voltage||220V±10%, 110V±10%, 50/60HZ|
|Remote control distance||≥30m|
|Max boom length||8m|
The highway high-speed barrier gate is a safety fast operation barrier to stop unauthorized vehicle from accessing. They are widely used at highway tollgate, airport, and other parking lot. Users can control the highway automatic boom barrier gate with remote controller or manual button, which is very convenient.
Intelligence parking Barrier gate with special motor main controller with multiple running mode optional . Use of advanced anti-aging waterproof ,durable ,do not fade. yellow ,green ,blue can be optional . reasonable structure design , used for management lane, divide into straight pole , fold pole,two fence, three fence .
Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system, factory gate,bus station and so on.
Customized boom length optional.
Straight boom arm, max 6meters.
Fence style boom arm, max 5meters.
Folding style boom arm, max 4meters.
High speed 1.6S/3S barrier boom arm max 2-4meters.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 3000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters
Functions & Features:
1. Anti-collision, with foam covering the boom.(Optional)
2. Anti-smashing, with pressure wave switch to avoid strong hitting and damage.(Optional)
3. Quick movement configurable opening times: 0.6S, 1.5S, 3S, 6S are optional
4. Traffic light LED screen. Green for open. Red for close. Or Warning RED Light.
5.Self-learning function and encoder controlled movement
6.Integrated obstacle detection system for extra safety
7.Customized boom length. Max 2m.
8.Easy to integrate with other parking access control system
9.Two operation modes: Remote control, manual button
10.Loop detector can be equipped.
11.Simply structure, runs stable and reliable.
12. Good quality with competitive price.
Why to choose WEJOIN Traffic Parking Boom Barrier Gate?
1. Automatic Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on
2.Automatic Boom Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
3. Automatic Parking Boom Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
We have sold barrier gate to more than 50 countries ,like Brazil,Chile,Pure, Colombia,
United States,Australia,Canada, New Zealand, the Netherlands, Switzerland, Sweden,German, Portugal, Philippines,Vietnam, Singapore, Malasia,Saudi Arabia, Kenya,Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on.
