Remote Control Entrance Barrier Systems , Automatic Gate Barrier System 220V

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: US $440-$540.00 / Units
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 units / month
Contact Now
Detail Information
Color: Orange Application: Parking Lot
Boom Length: Max.6m Operating Temperature: -40℃-75℃
Running Time: 1 Sec , 3 Sec , 6 Sec Motor Voltage: 220V

Product Description

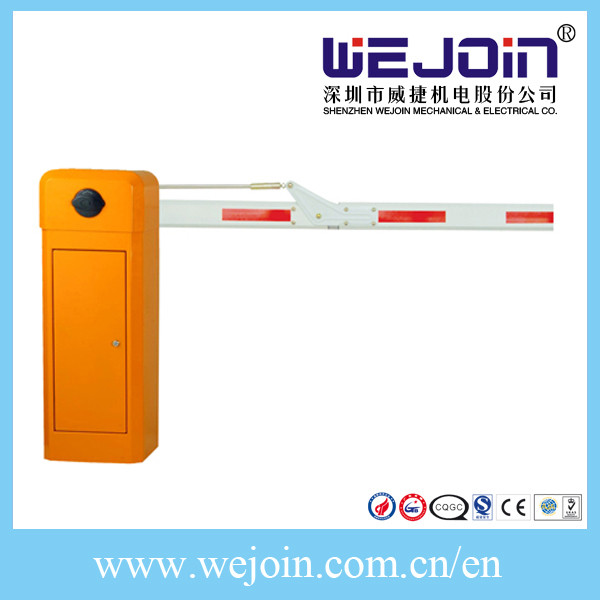

WEJOIN BARRIER GATE DZ102







The WEDZ102 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.





Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.




Communication with customers


Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.

Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

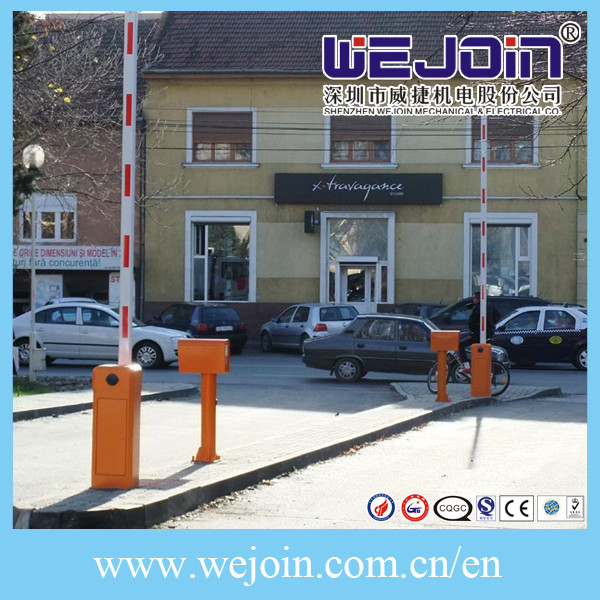

Applications:





Quick Detail:

Name: High Speed Barrier Gate ,
Application : Highway toll
Certificate: CE, ISO,
Net Weight:60KG
Voltage: AC220V, AC110V
Rated Power:80W
Speed: 1 second
Feature: Manual release





Technical Data


Model WJDZ102
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Speed 1S
Max boom length 3 meters



Model Selection and Differences



Model Boom Shape Max Boom Length Speed
WJDZ10116
WJDZ10216
Straight boom 6m 6 seconds
WJDZ10113
WJDZ10213
Straight boom 4.5m 3 seconds
WJDZ10111
WJDZ10211
Straight boom 3m 1 second
WJDZ10126 WJDZ10226 90 degree, Articulated boom 5m 6 seconds
WJDZ10123 WJDZ10223 90 degree, Articulated boom 3m 3 seconds
WJDZ10136 WJDZ10236 180 degree, Articulated boom 5m 6 seconds
WJDZ10133 WJDZ10233 180 degree, Articulated boom 3m 3 seconds

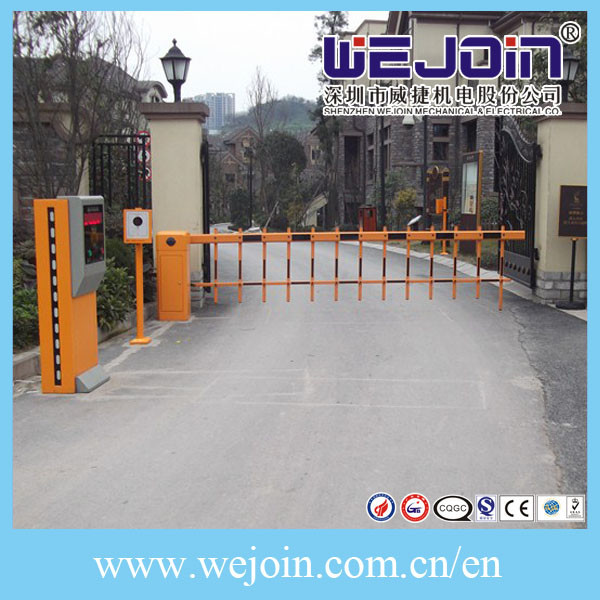

WJDZ10146 WJDZ10246 Two-level, fence boom 4.5m 6 seconds
WJDZ10156 WJDZ10256 Three level, fence boom 4m 6 seconds



Functions & Features

1) Manual realease
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
12) RS485 Communication module (optional).



Why to choose WEJOIN High Speed Barrier Gate?


1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.
2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
