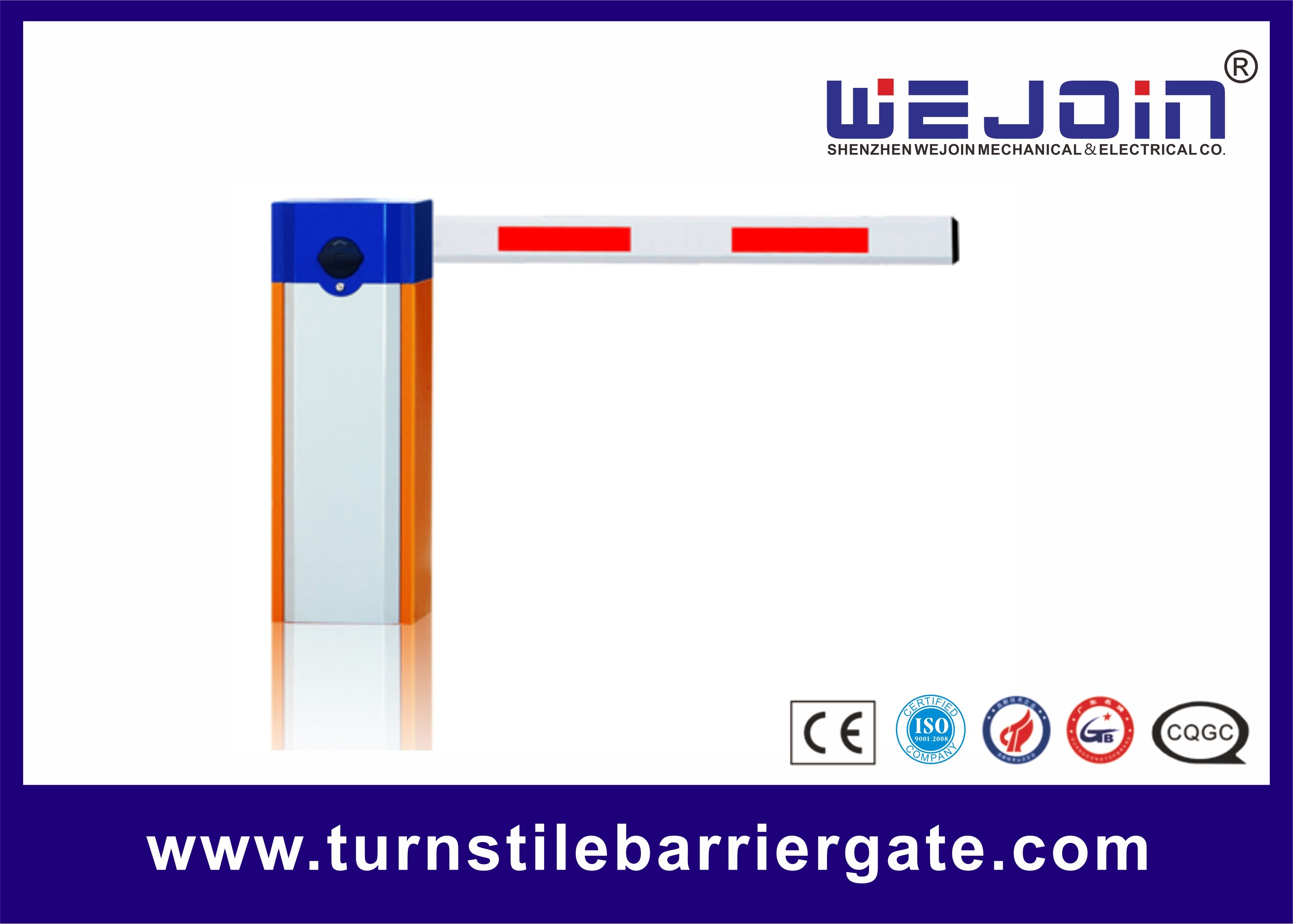

Intelligent Automatic Gate Barrier System High Security Straight Arm For Parking Lot

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: CE, ISO
Model Number: WJDZ107
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Units / Month
Detail Information
Speed: 1S,3S,6S Color: Optional
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Boom Type: Straight Arm; Folding Arm; Fence Arm,Telescopic Arm COM Interface: RS485
High Light:

automatic car park barriers

,

vehicle barrier gates


Product Description





 Automatic Barrier Gate



Quick Detail:





A. Name: Automatic Barrier Gate

B. Voltage: AC220V, AC110V

C. Speed: 1s,3s,6s

D. Net Weight:60KG

E. Application: Highway toll

F. Feature: Manual release

G. Power consumption: 300W

H. Certificate: CE, ISO,





Description:

The WEDZ101 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.



Functions & Features:



1.New deceleration device,using CNC comprehensive precision process;reducing notice,preventing oil spills,better working,more convenient maintenance.

2.Cranks of main power output,use cast steel,swing crank uses strengthen design,the working life can be 6 million times during normal maintenance.Daily working times(non-stop) can be over 60000.

3.The motor well adapts to high and low temperature(-35℃~85℃)

4.New digital limit technology,free adjusting,precise control;Buffer and slow down when arem goes to limit position,working is more stably.

5.More powerful control system,microcomputer settings,arm up angle adjustable,counting,auto closing time adjustable,sensibility of reversing on obstacle adjustable,RS485 communication,working speed adjustable,and etc.





Specifications :





Model WJDZ101
Working Temperature -35℃~+85℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Power consumption 300W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Speed 1s,3s,6s
Parameter choose direction,length,style of arm





Why to choose WEJOIN High Speed Barrier Gate?





1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.

2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
