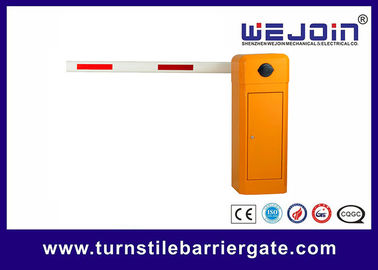

Automatic car Parking Barrier Gate for Highway toll
Quick Detail:
1. Name: High Speed Barrier Gate
2. Net Weight: 60KG
3. Speed: 1 second
4. Rated Power: 80W
5. Application: Highway toll
6. Feature: Manual release
7. Certificate: CE, ISO,
9. Voltage: AC220V, AC110V
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Specifications :
Model | WJDZ10211 |
Working Temperature | -35℃~+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 60kgs |
Speed | 1S |
Max boom length | 3 meters |
Why to choose WEJOIN High Speed Barrier Gate?
1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.
2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Functions & Features:
1) Manual realease |
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking; |
3) Die-casting aluminum alloy motor, precision and good at thermal radiating; |
4) Motor cooling fan, solving the problem of heat-protection; |
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor); |
6) Reversing on obstacle; |
7) Auto-closing; |
8) Support the In frared Photocell for anti-bumping function(optional); |
9) Support the external and internal Vehicle Loop Detector; |
10) Traffic light interface; |
11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ ); |
12) RS485 Communication module (optional). |
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
