CE Approved Toll Gate Car Park Barriers Access Control Boom Gate Steel Housing

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Optional
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes Boom Type: Straight Arm; Folding Arm; Fence Arm
High Light:

parking barrier gates

,

car park barrier systems


Product Description


High Speed Vehicle Control Barrier for Toll System With Motor Cooling Fan



Why to choose WEJOIN Traffic Parking Boom Barrier Gate?

1. Automatic Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on
2. Automatic Boom Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
3. Automatic Parking Boom Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.


Quick Detail:

  1. Name: Vehicle access
  2. Application: Toll system
  3. Speed:1s,3s,6s
  4. Feature: Auto-closing
  5. Rated Power:80W
  6. Certificate:CE, ISO
  7. Net Weight: 60KG
  8. Voltage:AC220V, AC110V

 Functions & Features:

1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing on obstacle
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible




More Descriptions

1) The opening/closing time of this high spped barrier gate can reach 0.9 to 3.2sec

2) Straight arm with rubber bar, Max.length following:

3) This hith speed barrier gate is Inclusive of arm and "push button" which opens/closes barrier

4) This high speed barrier is exclusive of LED light bar,remoter, boom bracket and anti-collision mechanism: need to buy extrally

5) This high speed barrier gate provides optional housing color as yellow (default),orange, white, red and blue

6) This high speed barrier provides optional boom arm direction as leftward or rightward

7) This high speed barrier up the arm after power off



Description:

Model Selection and Differences

Model Boom Shape Max Boom Length Speed
WJDZ10216 Straight boom 6m 6 seconds
WJDZ10213 Straight boom 4.5m 3 seconds
WJDZ10211 Straight boom 3m 1 second
WJDZ10226 90 degree, Articulated boom 5m 6 seconds
WJDZ10223 90 degree, Articulated boom 3m 3 seconds
WJDZ10236 180 degree, Articulated boom 5m 6 seconds
WJDZ10233 180 degree, Articulated boom 3m 3 seconds

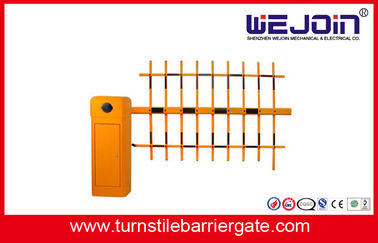

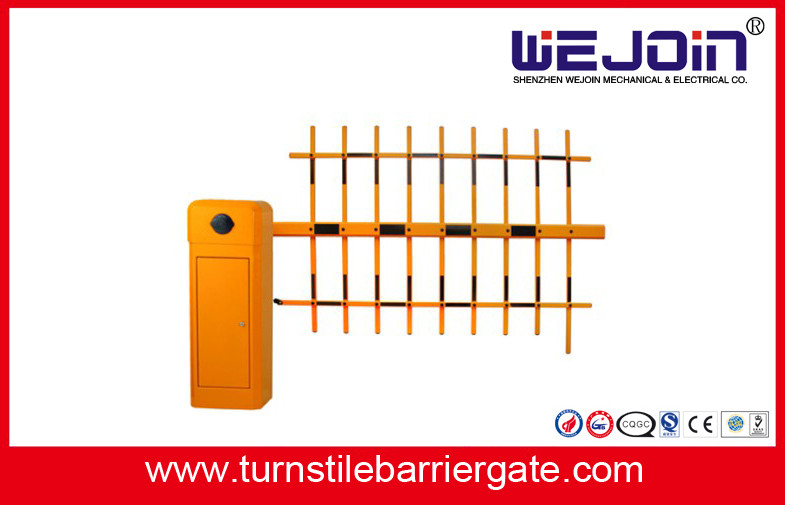

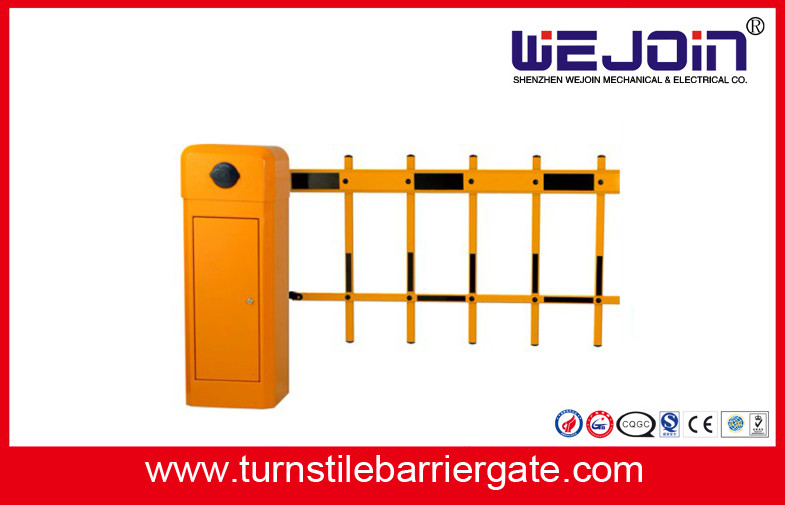

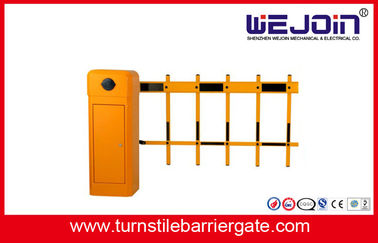

WJDZ10246 Two-level, fence boom 4.5m 6 seconds
WJDZ10256 Three level, fence boom 4m 6 seconds





Applications:

Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system, factory gate,bus station and so on.

1. Feature of the master controller: High integration and strong logic function Multiple operation modes Equipped with ports for internal auto charging system, loop inductor and signal lamp., etc

2. Features of special 220V torque motor: Maintenance-free Condensation and corrosion prevention Mechanical failure decreased Instant heavy current and voltage prevention

3. Safety protection functions; Collision prevention LED red/green signal lamp Infrared ray protection Remote control Falling protection

Specifications


Model WJDZ102
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Max boom length 8m
Speed 1S,3s,6s
Net weight 60kgs


Packaging Details: standard export carton or wooden case
Delivery Details: 3~7 working days upon receipt of your deposit .
Shipping:If you do not have forwarder,we can arrange shipping by express,air and sea Full set contains: 1 barrier, 1 straight boom withe red rubber 5m, 1 boom support, mounting plate, 1 control unit with 2 remotes.
In order to protect the goods, pls order barrier in even number, 4,6,8pcs per wooden pallet.(each pallet holds 8pcs at most)


Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.

Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters
