High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W

    • High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W
    • High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W
    • High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W
  • High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W

    Product Details:

    Place of Origin: China
    Brand Name: WEJOIN
    Certification: CE, ISO,
    Model Number: WJDZ102

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 350 - 495/set
    Packaging Details: Carton Package
    Delivery Time: 3-7 working days after payment received
    Payment Terms: T/T
    Supply Ability: 10000 sets per month
    Contact Now
    Detailed Product Description
    Material Of Housing: Iron Speed Of Motor: 1s,1.8s,3s,6s
    Max Boom Length: 6m Standard Color: Orange
    Standard Package: Carton Package Boom Type: Straight Boom; Folding Boom; Fence Boom


    Car Barrier Arm Gates / Automatic Barrier Gate


    Application

    Suitable for indoor as well as outdoor parking area
    Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access
    shopping malls, hospitals, stadiums, business centers,etc.

    Technical Specification


    Description

    Parameter

    Working Temperature

    -40℃~+75℃

    Voltage

    220V±10%, 110V±10%, 50/60HZ

    Rated power

    80W

    Relative humidity

    ≤90%

    Remote control distance

    ≥30m

    Net weight

    60kgs

    Arm Speed

    1s, 1.8s, 3s, 6s

    Max boom length

    8 meters


    Ordering Information



    Model No.

    Open/Close Speed

    Max Boom Length

    Boom Type

    WJDZ10216

    6 seconds

    6m

    Straight boom

    WJDZ10213

    3 seconds

    4.5m

    Straight boom

    WJDZ10211

    1 second

    3m

    Straight boom

    WJDZ10226

    6 seconds

    5m

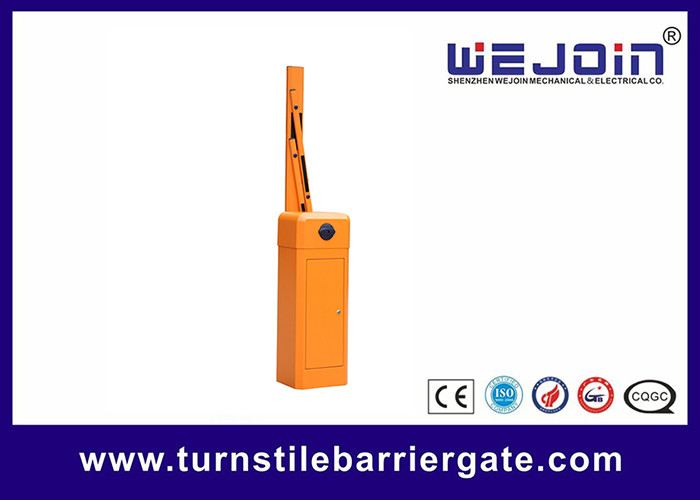

    90 degree, Articulated boom

    WJDZ10223

    3 seconds

    3m

    90 degree, Articulated boom

    WJDZ10236

    6 seconds

    5m

    180 degree, Articulated boom

    WJDZ10233

    3 seconds

    3m

    180 degree, Articulated boom

    WJDZ10246

    6 seconds

    4.5m

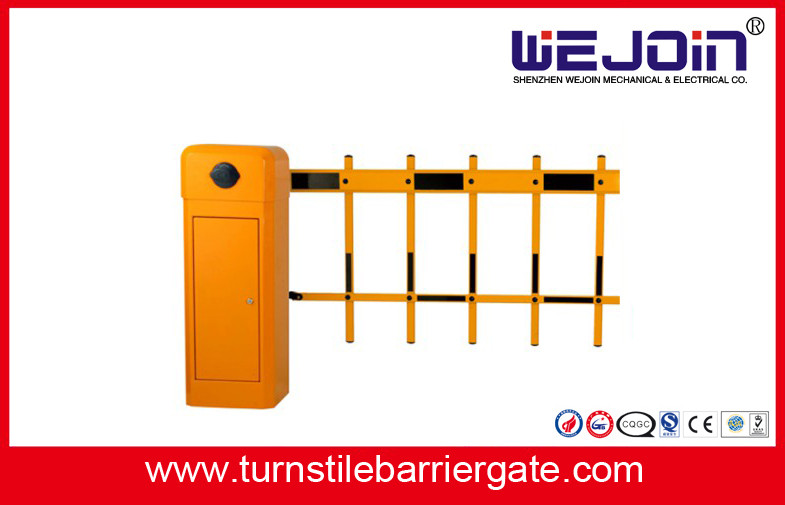

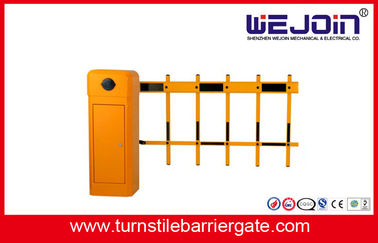

    Two-level, fence boom

    WJDZ10256

    6 seconds

    4m

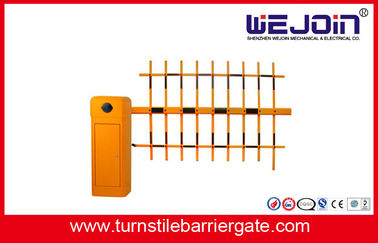

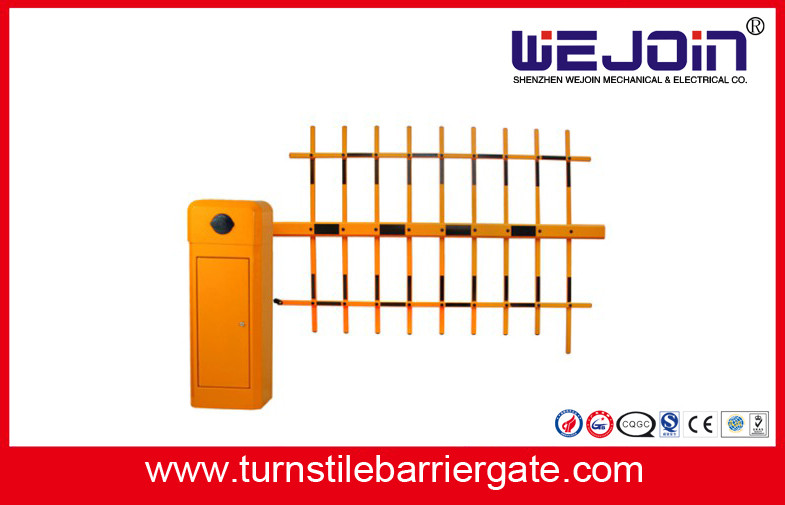

    Three level, fence boom













    Features:
    Advanced Features:

    1. Safe---the barrier will automatically go back when meet obstacles during closing.

    2, Swing Out- Arm will swing out when hit directly by vehicle (only 1 second model ) to avoid further damage on the vehicle.

    3. Clutch key can be used to release the clutch when power off.

    4. Fan cooling machine reduces the motor temperature by high frequency using, and never get over-heated. Unique temperature calefaction design for low temperature using prevents freezing in cold weather.

    5. Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the
     barrier gate working life.

    6. Thimble type motor worm design for preventing plugging up in using.

    7. Balance spring--- no noise and easy adjusting.

    8. Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.

    Basic Features:

    • AC motor is more powerful and no maintenance.
    • Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1 second
    •  to 6 seconds.
    • All the operation process is soft without any noise and shaking.
    • Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other
    •  functions.
    • Green light and red light are used inside for indication the position of the boom.

    Barrier housing Dimension
    Study and strong housing 2.5 mm thickness mild steel, Housing is polished, phosphorized and further finished
     with plastic coating to ensure long lasting bright colors

    High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W            High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W
    Model: WJDZ102                            Dimension: 330*285*934mm





    Certification:

    WEJOIN product manufacturing and testing are conducted in rigorous conformation with ISO international
    quality management system standards, allowing our company to be ISO certified. Meanwhile, our products
    have earned CE marking and more than 80 patent rights.



    Company, Factory and Showroom

    WEJOIN Science & Technology Park, which spans 12,000 square meters and offers a combined floor area
    of up to 28,000 square meters, boasts of a most completely independent production line compared with the
    same industry in China.

    All Product Tests Before Delivery:

    WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
    High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W




















     High Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80WHigh Speed Remote Control Automatic Car Park Barriers 6m Max Boom Length 80W
