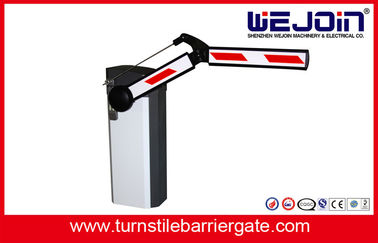

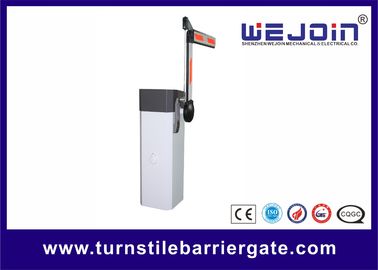

50/60hz Access Control Barriers , Toll System Automatic Parking Barrier Gate

    • 50/60hz Access Control Barriers , Toll System Automatic Parking Barrier Gate
    • 50/60hz Access Control Barriers , Toll System Automatic Parking Barrier Gate
    • 50/60hz Access Control Barriers , Toll System Automatic Parking Barrier Gate
  • 50/60hz Access Control Barriers , Toll System Automatic Parking Barrier Gate

    Product Details:

    Place of Origin: China
    Brand Name: WEJOIN
    Certification: CE,ISO,
    Model Number: WJDZ820

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Carton,wooden box
    Delivery Time: 1-20 days
    Payment Terms: T/T,L/C,Western Union
    Supply Ability: 5000 units/weeke
    Trade Terms: EXW,FOB,CIF
    Contact Now
    Detailed Product Description
    Voltage: 220v 110v Frequency: 50/60hz
    Power: 80w Protection Grade: IP44
    Running Time: 1.5s, 3s, 6s



    Customized Security Traffic Toll Gate Vehicle Access Control Barriers





    Quick Detail:





    Name: Cutting-edge barrier gate

    Application: Bus station

    Speed:3/6 second

    Feature: Cutting-edge barrier gate

    Rated Power:80W

    Certificate:CE, ISO,

    Net Weight:50KG

    Voltage:AC220V, AC110V





    Description:



    Model Selection and Differences



    Model(WJDZ)



    Item

    820-13 820-16 820-26 820-36 820-46 820-56
    Opening Time 3S 6S
    Boom Type Straight

    Articulated

    90 degree

    Articulated

    180 degree

    Fence

    Two-level

    Fence

    Three level

    Boom Length 3m 6m 5m 5m 5m 5m
    Voltage 220V/110V
    Remote control distance 30m≤L≤100m
    Protection Grade IP44
    Working Temperature -35℃ - +60℃
    Rated Power 80w





    Functions & Features:



    1. Open the barrier gate by motor wheel when power off and automatic locking when power on

    2. Balanced boom running with a motor transmission of cranks and shafts

    3. Boom with protective rubber band

    4. Offering dry contact signal for car parking system (COM, NC, NO)

    5. Infrared photocells interface is available

    6. Loop detector interface is available

    7. Well-integrated with car parking system equipments, with wire control (push button)

    8. Interface for traffic light

    9. Auto-reverse when the boom meets obstruction

    10. Auto-delay when closing (adjustable)

    11. Remote control frequency: 315 MHz, 418MHz, 433MHz

    12. Remote control to operate the barrier gate





    Applications:



    Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.





    Specifications



    Model WJDZ820
    Working Temperature -40℃~+75℃
    Voltage 220V±10%, 110V±10%, 50/60HZ
    Rated power 80W
    Relative humidity ≤90%
    Remote control distance ≥30m
    Net weight 50kgs
    Speed 1.5S, 3S, 6S
    Max boom length 6 meters





    Why to choose WEJOIN Cutting-edge Barrier Gate with rubber on boom?



    1. Barrier Gate with rubber on boom adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.

    2. Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

    3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.

    4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





    Communication with customers



    Q: As for the over-heating problem of barrier gate

    A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



    Q: Sometimes, Why the barrier boom would open automatically?

    A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.



    Q: What's WEJOIN monthly production capacity for barrier gate?

    A: 10000 units.



    Q: What’s the remote control distance?

    A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
