Place of Origin: | China |
---|---|
Brand Name: | WEJOIN |
Certification: | CE, ISO, |
Model Number: | DZ102 |
Minimum Order Quantity: | 1set |
Price: | negotiation |
Packaging Details: | Export Wooden Case |
Delivery Time: | 3-15 days depending on the quantity |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1, 000 set/month |
Voltage: | 110v Or 220v | Motor: | AC Motor |
---|---|---|---|
Power: | 80w | Protection Grade: | IP44 |
Boom Type: | Srtaight | ||
High Light: | 80 Watt Automatic Parking Gate Barrier,AC Motor Automatic Parking Gate Barrier,Srtaight Boom Drop Arm Turnstile |

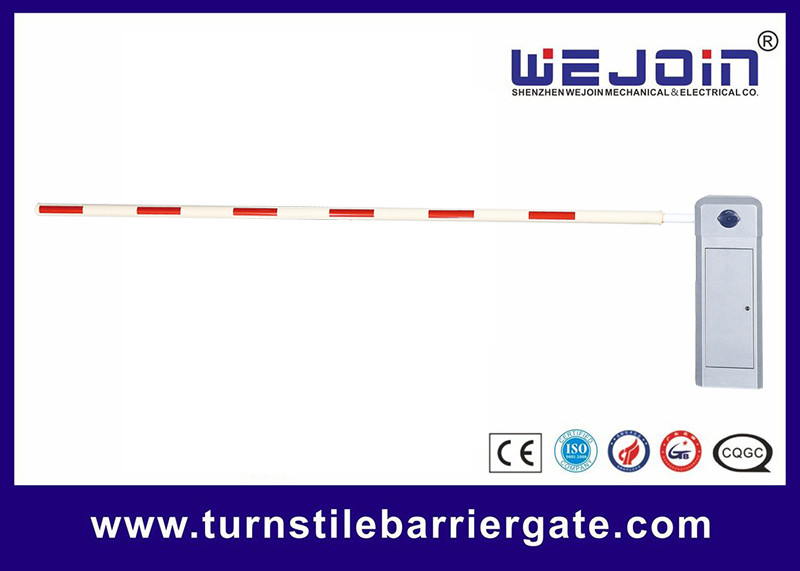

LED Boom Vehicle Barrier Gate Automatic Car Park Barrier
Quick Detail:
Name: Automatic Barrier Gate
Application : Parking System
Speed:3/6 second
Feature: Manual release
Rated Power:80W
Certificate:CE, ISO,
Net Weight:45KG
Voltage:AC220V, AC110V
Description:
Model Selection and Differences
Model |
WJDZ10213 |
WJDZ10216 |
Opening Time |
3S |
6S |
Boom Type |
Straight |
|
Max Boom Length |
4.5M |
6M |
Voltage |
110V/220V |
|
Motor/Power |
AC/80W |
|
Working Temperature |
-35℃ - 75℃ |
|
Protection Grade |
IP44 |
|
Remote Control Distance |
30M~100M |
Functions & Features:
1. Advanced manual release
4. Adopts the self-developed WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (the color is changeable with remote control)
15. Remote Control Frequency: 315MHz, 418MHz, 433MHz
Applications:
Barrier Gate with LED boom is installed with LED boom and a traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Besides the LED, the boom is also installed with rubber below, which not only indicates the transit situation but also protects the vehicle from hitting.
