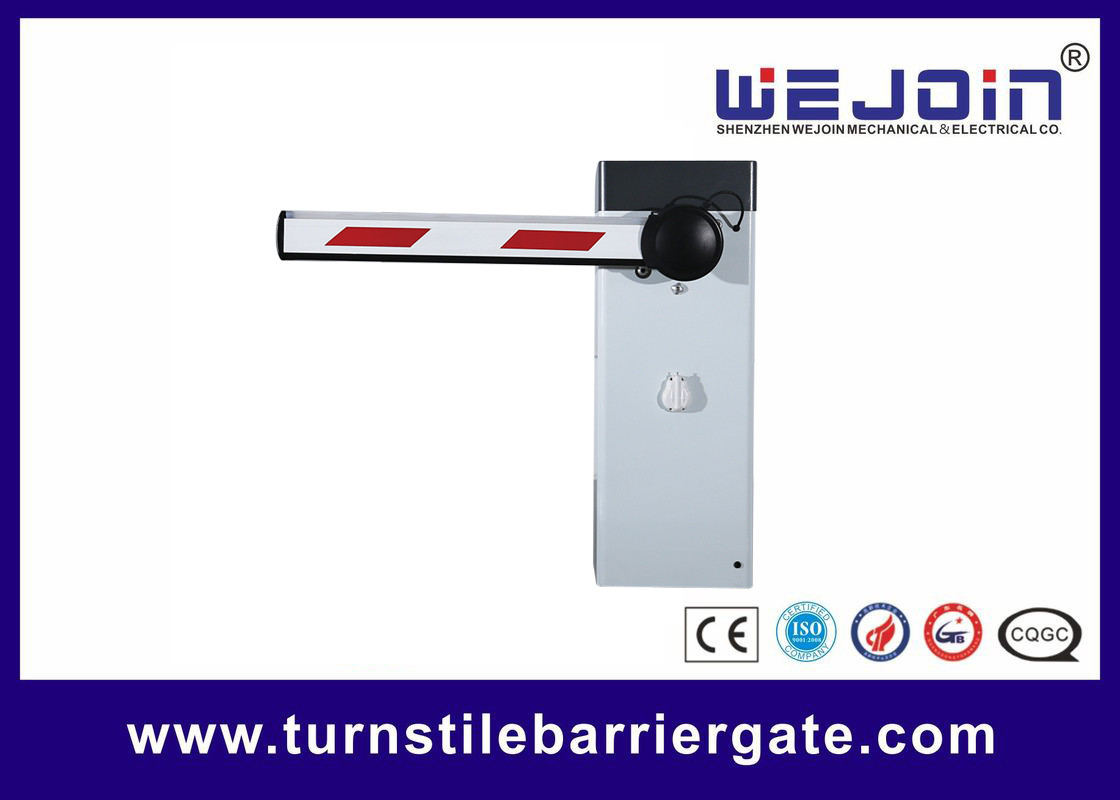

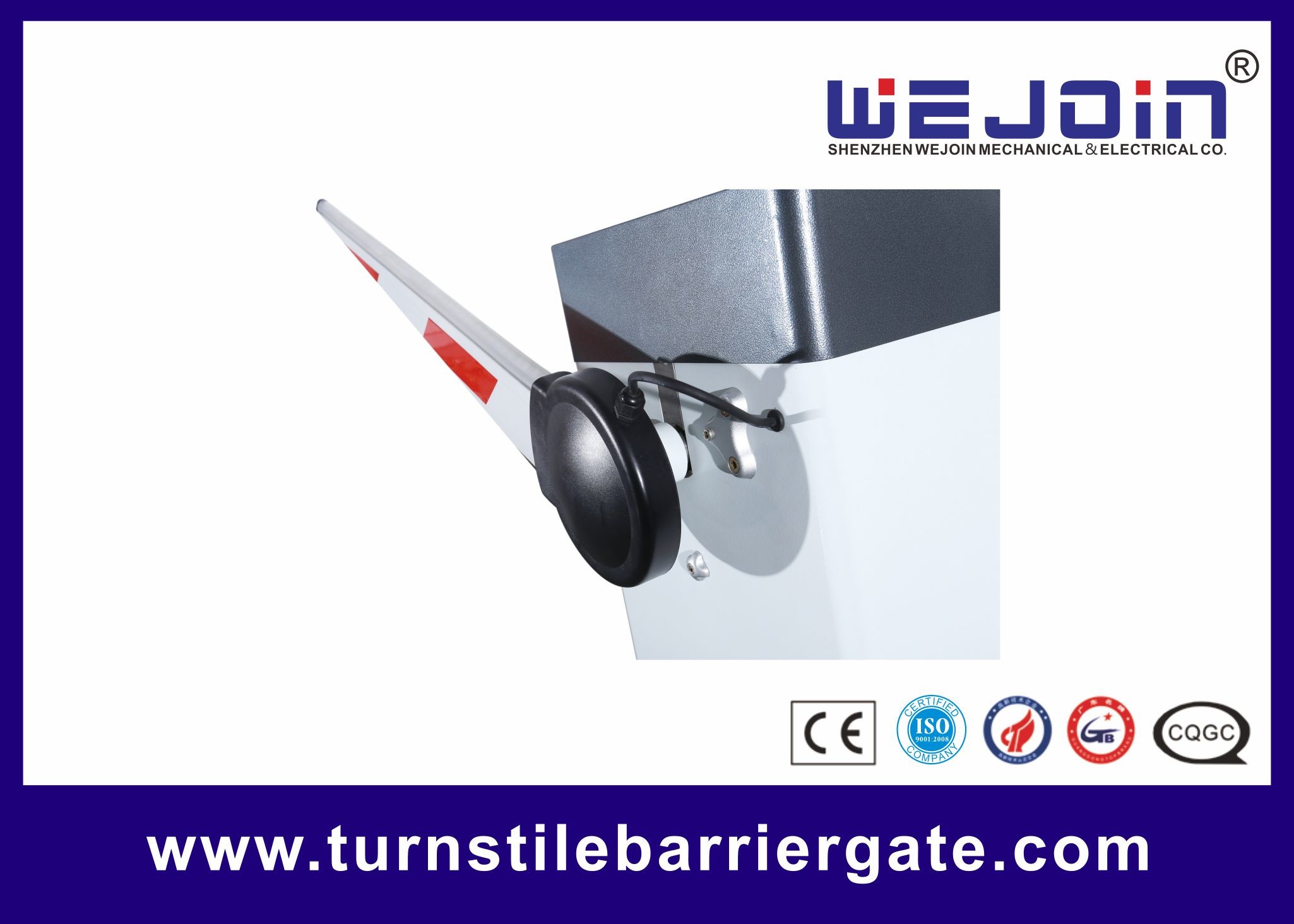

Highly Secure Intelligent Barrier Gate Electric Manual Release With Straight Barrier Arm

    • Highly Secure Intelligent Barrier Gate Electric Manual Release With Straight Barrier Arm
    • Highly Secure Intelligent Barrier Gate Electric Manual Release With Straight Barrier Arm
    • Highly Secure Intelligent Barrier Gate Electric Manual Release With Straight Barrier Arm
  • Highly Secure Intelligent Barrier Gate Electric Manual Release With Straight Barrier Arm

    Product Details:

    Place of Origin: China
    Brand Name: WEJOIN
    Certification: CE, ISO,
    Model Number: WJDZ620

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Wooden Case
    Delivery Time: 3-15 days depending on the quantity
    Payment Terms: T/T, Western Union
    Supply Ability: 1, 000 set/month
    Contact Now
    Detailed Product Description
    Voltage: 110v 220v Motor: Ac
    Power: 120w Protection Grade: IP44
    Boom Type: Srtaight



    LED Boom Vehicle Barrier Gate / Automatic Car Park Barriers For Supermarket





    Applications:



    Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.



    Quick Detail:







    Name: Bi-directional Barrier Gate

    Application : Parking System

    Speed:3/6 second

    Feature: Manual release

    Rated Power:120W

    Certificate:CE, ISO,

    Net Weight:45KG

    Voltage:AC220V, AC110V





    Why to choose WEJOIN Bi-directional Barrier Gate?





    1. Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.

    2. Barrier Gate with LED boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

    3. Special barrier core makes its installation direction adjustable. Also he barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

    4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.







    Functions & Features:



    1. Advanced manual release
    2. Boom can rise and fall on left/right side by setting on the same machine
    3. No need to change the balance spring when changing the booms
    4. Adopts the 3rd generation WEJOIN machine core
    5. Supports the infrared photocell for anti-bumping function (optional)
    6. Supports the external and internal vehicle loop detector (optional)
    7. Auto closing
    8. RS485 communication module (optional)
    9. Thermal radiates rapidly, no thermal protection
    10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
    11. Special art and craft makes out the most modernized and fashionable housing
    12. Safety photo electricity limit switch

    13. Boom with LED light (color is changeable with remote control)

    14. Cabinet with traffic light

    15. Remote Control Frequency: 315MHz, 418MHz, 433MHz







    Description:





    Model Selection and Differences





    Model

    Item

    WJDZ62013 WJDZ62016
    Opening Time 3S 6S
    Boom Type Straight, square-shaped
    Boom Length 3M 4M
    Voltage 110V/220V
    Motor/Power AC/120W
    Working Temperature -35℃ - 75℃
    Protection Grade IP44
    Remote Control Distance 30M~100M













    Communication with customers



    Q: What's WEJOIN monthly production capacity for barrier gate?

    A: 10000 units.



    Q: As for the over-heating problem of barrier gate

    A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



    Q: Sometimes, Why the barrier boom would open automatically?

    A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.



    Q: What’s the remote control distance?

    A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.



    Specifications



    Model WJDZ620
    Working Temperature -40℃~+75℃
    Voltage 220V±10%, 110V±10%, 50/60HZ
    Rated power 120W
    Relative humidity ≤90%
    Remote control distance ≥30m
    Net weight 45kgs
    Speed 3S, 6S
    Max boom length 6 meters
