Bi - Directional Electronic Barrier Gates IP54 Protection 1/3/6 Second Manual Release

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ501
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 units/week
Detail Information
Power: 220V±10%, 110V±10%, 50/60HZ Running Time: 1.5S, 3 S And 6 S
Motor: AC Motor, 80W, 24V Relative Humidity: ≤95%, No Condensation
Protection Grade: IP54 Operating Temperature: -40℃-75℃
High Light:

automatic car park barriers

,

automatic parking barrier


Product Description

Access electronic intelligent parking lot barrier gates



Electronic Barrier gates Applications:

Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.



Electronic Barrier gates Quick Detail:

Name: Bi-directional Barrier Gate

Speed:1/3/6 second

Feature: Manual release

Certificate:CE, ISO,

Net Weight:60KG

Voltage:AC220V, AC110V

Application : Parking System

Rated Power:80W



Electronic Barrier gates Description:

Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WJDZ50116

Straight boom

6m

6 seconds

WJDZ50113

Straight boom

4.5m

3 seconds

WJDZ50111

Straight boom

3m

1 second

WJDZ50126

90 degree, Articulated boom

5m

6 seconds

WJDZ50123

90 degree, Articulated boom

3m

3 seconds

WJDZ50136

180 degree, Articulated boom

5m

6 seconds

WJDZ50133

180 degree, Articulated boom

3m

3 seconds

WJDZ50146

Two-level, fence boom

4.5m

6 seconds

WJDZ50156

Three level, fence boom

4m

6 seconds



Electronic Barrier gates Specifications

Model

WJDZ501

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

60kgs

Speed

1S. 3S, 6S

Max boom length

6 meters



Why to choose WEJOIN Barrier Gate with LED screen?

1. Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.

2. Barrier Gate with LED screen uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.



Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 10000 units.

Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.



Electronic Barrier gates Functions & Features:

1. LED Screen

2. Motor cooling fan to avoid the over-heating possibility

3. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible

8. Traffic light interface

9. Manual release device to operate the barrier when power failure

10. Automatic moisture control

11. Infrared Photocells (optional)

12. Support the external and internal Vehicle Loop Detector (optional)



Product Preview:

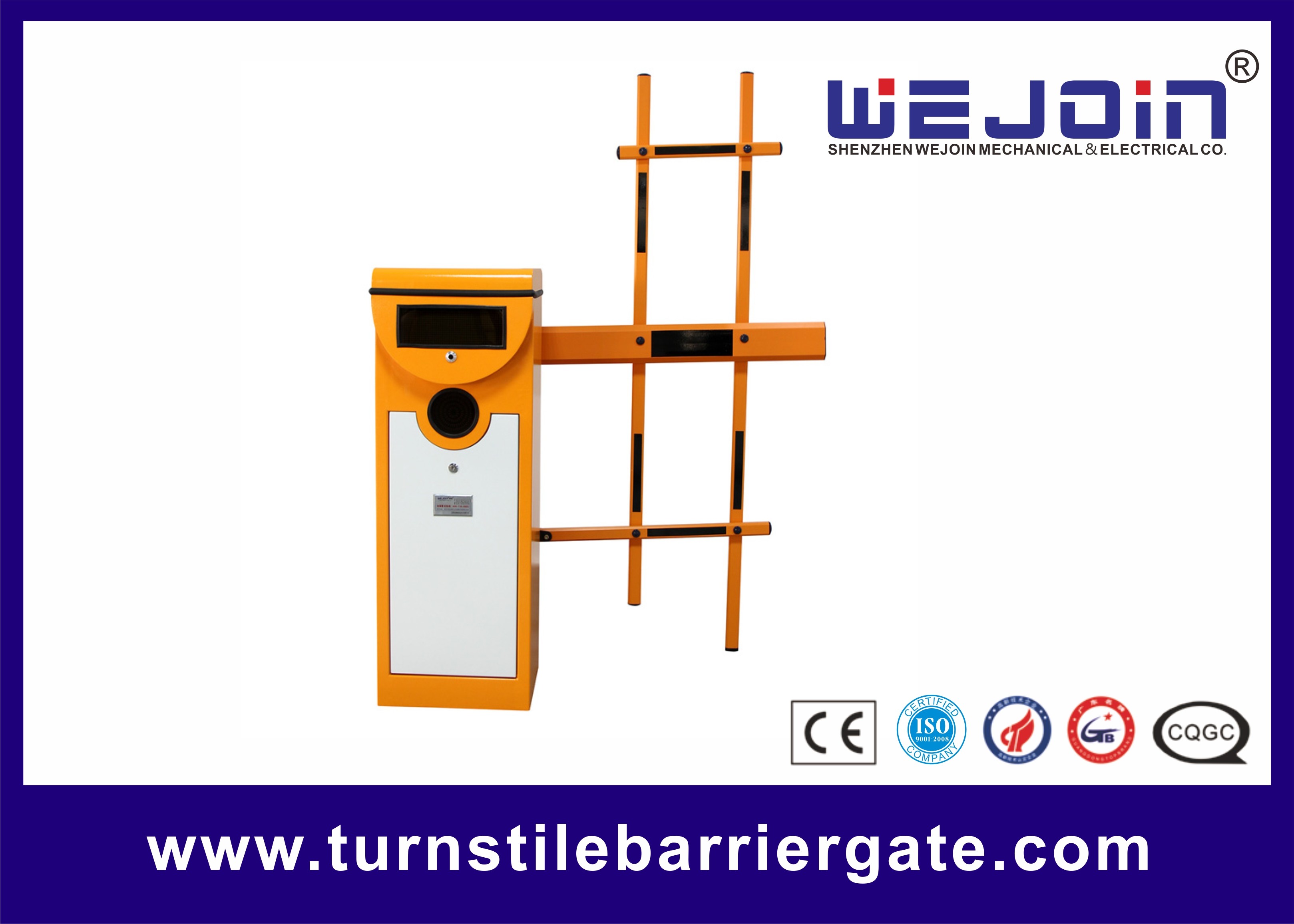

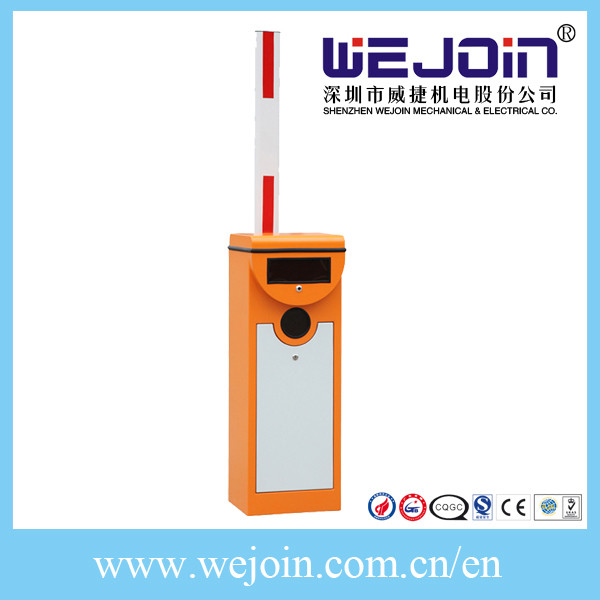

Bi - Directional Electronic Barrier Gates IP54 Protection 1/3/6 Second Manual Release 0
