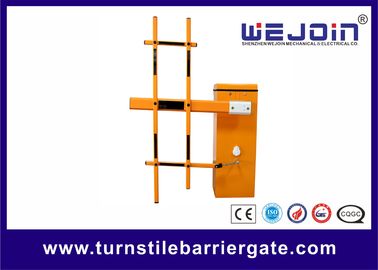

Plastic Road Safety Electric Barrier Gate System LED Screen RS485 Communication Module

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ501
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,Western Union,
Supply Ability: 5000 units/week
Detail Information
Power: 220V±10%, 110V±10%, 50/60HZ Running Time: 1.5S, 3 S And 6 S
Motor: AC Motor, 80W, 24V Relative Humidity: ≤95%, No Condensation
Protection Grade: IP54 Operating Temperature: -40℃-75℃
High Light:

automatic parking barrier

,

parking gate arm


Product Description

Access electronic intelligent parking lot barrier gates



Applications:

Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like 20:00, Friday, June 30th, 2013. And you can input any words you like, in English and Chinese. This barrier gate also has a traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.



Functions & Features:

1. LED Screen

2. Motor cooling fan to avoid the over-heating possibility

3. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible

8. Traffic light interface

9. Manual release device to operate the barrier when power failure

10. Automatic moisture control

11. Infrared Photocells (optional)

12. Support the external and internal Vehicle Loop Detector (optional)



Quick Detail:

Name: Bi-directional Barrier Gate

Speed:1/3/6 second

Feature: Manual release

Certificate: CE, ISO,

Net Weight:60KG

Voltage: AC220V, AC110V

Application: Parking System

Rated Power:80W



Specifications

Model WJDZ501
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Speed 1S. 3S, 6S
Max boom length 6 meters
