IP54 Protection Car Park Barrier System , Automatic Boom Barrier AC Motor 80W 24V

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ501
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 units/week
Detail Information
Power: 220V±10%, 110V±10%, 50/60HZ Running Time: 1.5S, 3 S And 6 S
Motor: AC Motor, 80W, 24V Relative Humidity: ≤95%, No Condensation
Protection Grade: IP54 Operating Temperature: -40℃-75℃
High Light:

automatic parking barrier

,

parking gate arm


Product Description



Access electronic intelligent parking lot barrier gates



Applications:





Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.



Functions & Features:





1. LED Screen

2. Motor cooling fan to avoid the over-heating possibility

3. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible

8. Traffic light interface

9. Manual release device to operate the barrier when power failure

10. Automatic moisture control

11. Infrared Photocells (optional)

12. Support the external and internal Vehicle Loop Detector (optional)





Quick Detail:





Name: Bi-directional Barrier Gate

Speed:1/3/6 second

Feature: Manual release

Certificate:CE, ISO,

Net Weight:60KG

Voltage:AC220V, AC110V

Application : Parking System

Rated Power:80W











Specifications





Model WJDZ501
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Speed 1S. 3S, 6S
Max boom length 6 meters





Description:





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ50116 Straight boom 6m 6 seconds
WJDZ50113 Straight boom 4.5m 3 seconds
WJDZ50111 Straight boom 3m 1 second
WJDZ50126 90 degree, Articulated boom 5m 6 seconds
WJDZ50123 90 degree, Articulated boom 3m 3 seconds
WJDZ50136 180 degree, Articulated boom 5m 6 seconds
WJDZ50133 180 degree, Articulated boom 3m 3 seconds
WJDZ50146 Two-level, fence boom 4.5m 6 seconds
WJDZ50156 Three level, fence boom 4m 6 seconds







Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 10000 units.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.






Why to choose WEJOIN Barrier Gate with LED screen?





1. Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.



2. Barrier Gate with LED screen uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.



3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.











Product Preview:

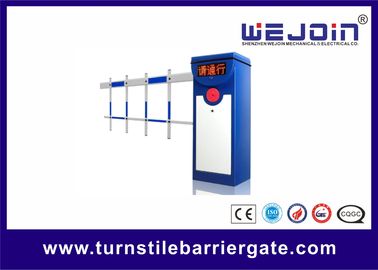

IP54 Protection Car Park Barrier System , Automatic Boom Barrier AC Motor 80W 24V 0
