Automatic Smart Parking System Remote Control Barrier Gate 6s Speed AC220V/110V

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ501
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton
Delivery Time: 1--10 working days
Payment Terms: T/T,Western Union
Supply Ability: 5000 units/month
Detail Information
Boom Type: 2 Fence Color: Orange
Carton Dimension: 111*40*50cm Rational Power: 80W
Speed: 6s RS 485: Optional
High Light:

automatic barrier gate system


electric barrier gate

Product Description


CE Approved AC110V Parking System Auto Boom Barrier Gate With Orange Color Cabinet



Quick Detail:



  1. Name; LED screen Barrier Gate
  2. Application; Parking System
  3. Speed; 1/3/6 second
  4. Feature; Manual release
  5. Rated Power; 80W
  6. Certificate; CE, ISO,
  7. Net Weight; 60KG
  8. Voltage AC220V, AC110V






Model Selection and Differences



Model Boom Shape Max Boom Length Speed
WJDZ50116 Straight boom 6m 6 seconds
WJDZ50113 Straight boom 4.5m 3 seconds
WJDZ50111 Straight boom 3m 1 second
WJDZ50126 90 degree, Articulated boom 5m 6 seconds
WJDZ50123 90 degree, Articulated boom 3m 3 seconds
WJDZ50136 180 degree, Articulated boom 5m 6 seconds
WJDZ50133 180 degree, Articulated boom 3m 3 seconds
WJDZ50146 Two-level, fence boom 4.5m 6 seconds
WJDZ50156 Three level, fence boom 4m 6 seconds



Functions & Features:


1. LED Screen

2. Manual release device to operate the barrier when power failure

3. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

4. Motor cooling fan to avoid the over-heating possibility

5. Automatic reversing when the barrier boom meets the obstruction

6. Auto closing realization through menu setting on the control panel

7. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

8. RS485 Communication Module is compatible

9. Traffic light interface

10. Automatic moisture control

11. Infrared Photocells (optional)

12. Support the external and internal Vehicle Loop Detector (optional)

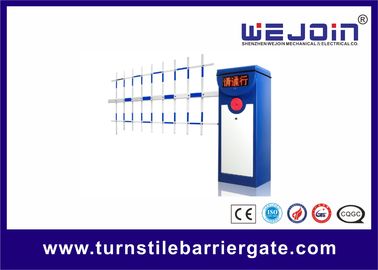

Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.



Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 10000 units.


Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.


Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.





Model WJDZ102
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Speed 1S. 3S, 6S
Max boom length 6 meters
