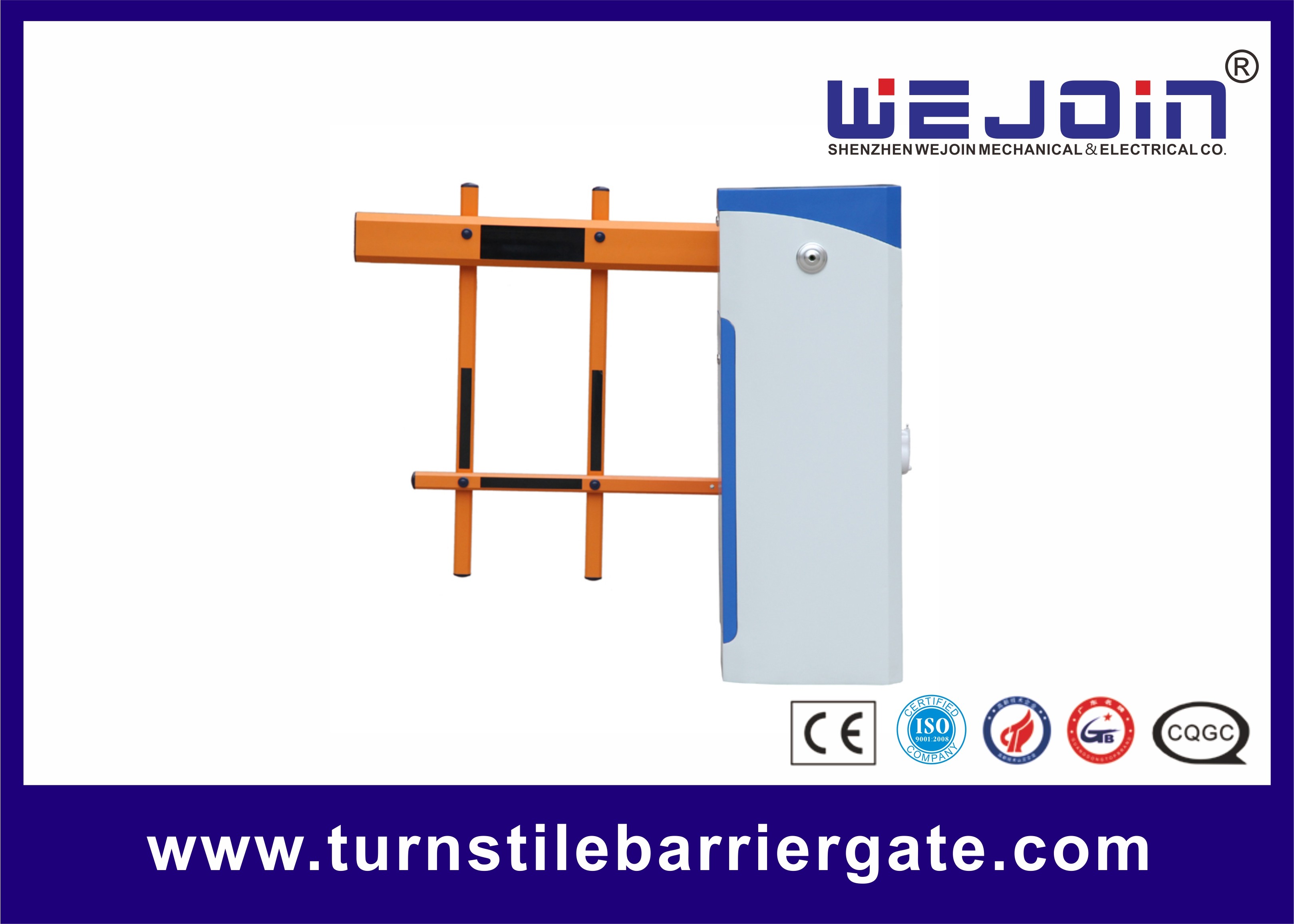

Vehicle Access / Parking Boom Barrier Gate Die - Casting Aluminum Alloy Motor

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ203/204
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 5000 units/weeke
Contact Now
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Optional
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Boom Type: Straight Arm; Folding Arm; Fence Arm COM Interface: RS485

Product Description




110V / 220V IC Card Access Control Barrier Vehicle Gate Arm for Hospital , Railway


Quick Detail:


  1. Name: Boom barrier Gate
  2. Application: Supermarket gate
  3. Speed: 1s,3s,6s
  4. Feature: IC Card interface
  5. Rated Power:80W
  6. Certificate:CE, ISO,
  7. Net Weight:60KG
  8. Voltage:AC220V, AC110V



Description:


Model Selection and Differences



ModelBoom ShapeBoom LengthSpeed
WJDZ203/204-13Straight boom4.5m3 seconds
WJDZ203/204-16Straight boom6 m6 second



Functions & Features:


1. Advanced Manual release:Auto-reset when power on
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing on obstacle
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. Optional speeds:1s,3s and 6s, can  be selected on the control board
8. Motor cooling fan,solves the problem of over-heat


Applications:


Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s and 6s. It can be used for toll system, bus station,bank,parking system, factory gate, and so on.


Specifications



ModelWJDZ203/204
Working Temperature-35℃~+75℃
Voltage220V±10%, 110V±10%, 50/60HZ
Rated power80W
Relative humidity≤90%
Remote control distance≥30m
Max boom length8meters
Speed1S,3s,6s
Net weight60kgs



Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q:Motor works but there is no reaction on the arm
A: Please check whether the clutch device is locked or not
Q:Why the boom is abnormal when rising and falling if the user changes a new control board
A: Please adjust the "Gate Type Selection" (Refer to the control board)
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

Why to choose WEJOIN Boom Barrier Gate?


1. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
4. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.
5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
6. Unique appearance,nice color accomplish the modemized housing.
7. Remotecontrol and wire control for selection


Vehicle Access / Parking Boom Barrier Gate Die - Casting Aluminum Alloy Motor
