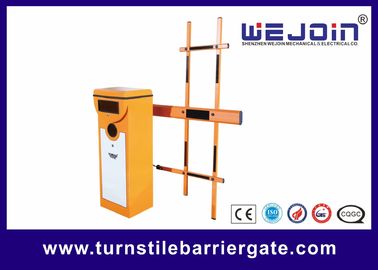

3 Fencing Boom Access Control Barrier Gate for Parking
Parking Barrier Gate Brief Introduction:
The WJDZJ intelligent barrier gate is one types of our company’s products with the latest technological design to realize the automatic and intelligent operation. Further more, the unique clutch device and the balance device has made the barrier gate become more reliable.
Parking Barrier Gate Features:
1.Wheel manual release.
In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.
when power on,the motor will work normally.
2.Machine core with strong and double spring,make the machine core works more steadly.
3.Die-casting aluminum alloy motor,precise and good at thermal radiation.
4.Crank and rod structure makes the boom run placidly
5.Double safety limit switches(photo electricity limit swithch and motor memory sensor)
6.Reversing on obstacle
7.Auto-closing
8.Support the infrared photocell for antibumping function(optional)
9.Support external and internal vehicle loop detector(optional)
10.Traffic light interface(ac 22v,can support lamp with 40w)
11.Wire control / remote control(418MHZ)
12.Digital limit, more precise
13.Open,close control interface for parking system
14.Provide limit state signal to parking system
Parking Barrier Gate Warranty and Service Items
Free service is oFFered for component parts in one year warranty time.
(not includes the barrier boom or remote)
Lifetime service with charge accordingly.
Technical questions are supported.
Parking Barrier Gate Technical Data:
Model (WJDZ) |
S18-13 |
S18-16 |
S18-23 |
S18-26 |
S18-33 |
S18-36 |
S18-46 |
S18-56 |
Speed |
3s |
6s |
3s |
6s |
3s |
6s |
6s |
6s |
Arm Type |
Straight (Telescopic arm is optional) |
90° folding |
180° folding |
2 fencing |
3 fencing |
|||
Max Arm Length |
4.5m |
6m |
3m |
5m |
3m |
5m |
4m |
3.5m |
Arm Dimension |
45*100mm |
|||||||
Voltage |
AC220V±10%, AC110V±10% |
|||||||
Frequency |
50/60HZ |
|||||||
Power Consumption |
200W |
|||||||
Humidity |
≤90% |
|||||||
Working Temperature |
-35°C∼+60°C |
|||||||
Housing Dimension (W*D*H) |
335*285*925mm |
|||||||
Enclosure Rating |
IP54 |
|||||||
MTBF |
2500000 times |
|||||||
Net Weight |
40KGS |
|||||||
Gross Weight |
45KGS |
Parking Barrier Gate Applications:
station
highway toll gate
high-grade residential area
commercial parking lots
enterprises and institutions
Commercial Plaza
WEJOIN's Main Advantages
Global leading company for barrier gate
Master of core technology and innovation
Intelligent quality manufacturing process and automatic flexible production
Global advanced manufacturing process and testing equipment
Servo,variable frequency,double speed,bi-direction motor and other leading technique
High speed and low speed coexist in motor
Intergral service network covering fist-tier and second-tier cities,and more under construction service network
FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
