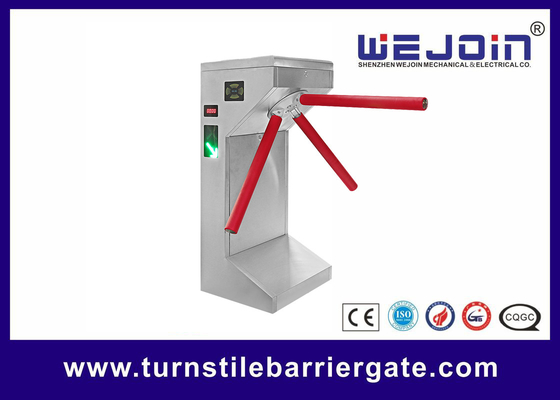

Full Automatic 304 Stainless Steel Intelligent Tripod Turnstile Barrier Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJTS122
Minimum Order Quantity: 1 set
Price: NEGOCIATE
Packaging Details: wooden
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 PCS/month
Detail Information
Functuion: Full Automatic Material: 304 Stainless Steel
Warranty: 1 Year Communication: RS485
Name: Tripod Turnstile Working Environment: Indoor Or Outdoor
High Light:

turnstile entry systems

,

pedestrian access control


Product Description

Full Automatic 304 Stainless Steel Intelligent Tripod Turnstile Barrier Gate



Turnstile Barrier Gate Introduction
This series of 304 stainless steel entrance tripod turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The 304 stainless steel entrance tripod turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of 304 stainless steel entrance tripod turnstile adopt standard electricity socket. It can read boom code card, ID cards, IC cards,s and so on.



Full automatic tripod turnstile

  • Stainless steel housing

  • Bi-direction passing, the arm can rotate from one direction or two directions(optional)

  • Adjustable working mode can be two-way passing or one-way passing, and the other is prohibited

  • Arms auto drop when power off

  • Arms auto rise up when power on and auto drop on an obstacle

  • Traffic light indicator

  • Wingen 26/Dry contact, is compatible with smart card for access control

  • Photoelectric inspection

  • If the passenger does not pass the invalid time, the passage will lock up, and the valid time is adjustable

  • Passenger counter.



Turnstile Barrier Gate Technology data

Model

Item

WJTS122

WJTS110

WJTS112

WJTS111

WJTS122s

WJTS110s

WJTS112s

WJTS111s

Manual, semi

or full automatic

Full-automatic

Semi-automatic

Material of housing

304 stainless steel

Iron with powder

304 stainless steel

Iron with powder

Dimension of housing

420*380*1000

1235*280*1000

1235*280*1000

420*380*1050

480*330*980

1200*280*980

1200*280*980

420*380*1050

Thickness of housing

1.5mm

1.5mm

Length of pole

490mm

490mm

Net weight

50kg

70 kg

70 kg

45 kg

40 kg

70 kg

70 kg

35 kg

Max load-bearing of pole

80kg

80kg

Driving force of the pole

3kg

3kg

Rotating direction

Double direction

Double direction

Power supply

220V±10%, 110± 10%

220V±10%, 110± 10%

Frequency

50/60HZ

50/60HZ

Working voltage of the motor

DC12V

DC24V

Rated power

50W

36W

Driving motor

Brush DC motor

Brushless DC motor

Input interface

DC12V electrical level signal, more than 10ms,

 or DC12V impulse signal driveling current, more 10mA

Dry contact with the pulse between 200ms~500ms

Transit speed

25~32 persons/min

30~45 persons/min

Working temperature

-25°C~55°C

-25°C~55°C

Working environment

Indoor / Outdoor (Shelter)

Indoor / Outdoor (Shelter)

Relative humidity

≤95%, no condensation

≤95%, no condensation
