Access control automatic car parking lot entrance barrier gate
Brief Introduction

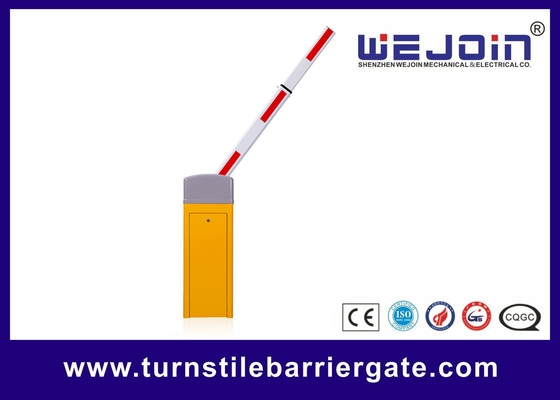

This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext.
Parking Barrier Gate Application
Suitable for indoor as well as outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Parking Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). 4-digit digital tube display, displays more information.
7). NO/NC wire control signal input are optional.
8). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.
Parking Barrier Gate Technical Data
Model |
WJDZ04SV1 (speed 3~5s adjustable) |
|||||
Running Speed |
3S |
4S |
5S |
5S |
5S |
5S |
Boom Type |
Straight |
Straight |
Straight |
90° Folding |
2 Fence |
3 Fence |
Max Boom Length |
4.5M |
5M |
6M |
5M |
4.5M |
4M |
Model |
WJDZ04SV2 (speed 1.5~5s adjustable) |
|||||
Running Speed |
1.5s |
2/3/4/5s |
5s |
5s |
5s |
|
Boom Type |
Straight |
Straight |
90° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3.5m |
4.5m-6m |
4m |
4.5m |
4m |
|
Housing Dimension |
362*325*1030mm |
|||||
Input Voltage |
AC220V±10%,AC110V±10% |
|||||
Frequency |
50/60HZ |
|||||
Motor Voltage |
DC310V |
|||||
Enclosure Rating |
IP54 |
|||||
Working Temperature |
-35°C~+85°C |
|||||
MTBF |
5000000 times |
|||||
Traffic Flow Application |
3000 times/24hours |
|||||
Max Motor Power |
150W |
|||||
Max Motor Speed |
24r/min |
|||||
Max Torque |
240N.m |
Parking Barrier Gate Packing List
Name |
Specification |
Quantity |
Unit |
Application |
Screw, Nuts, Flat Pad |
M12*70 |
2 |
sets |
Fixing the boom |
Boom Fixing Bar |
|
1 |
pcs |
Fixing the boom |
Boom Holder Plastic Cover |
|
1 |
sets |
Optional |
Cabinet Fixing Bar |
|
2 |
pcs |
Fixing the boom |
Expansion Screws |
M16*150 |
4 |
sets |
Fixing the boom |
Support Post |
|
1 |
pcs |
Optional |
Radio Emitter |
|
1 |
pcs |
Optional |
Keys |
|
2 |
pcs |
For cabinet door |
Remote Controller |
|
2 |
pcs |
|
Manual |
|
1 |
pcs |
