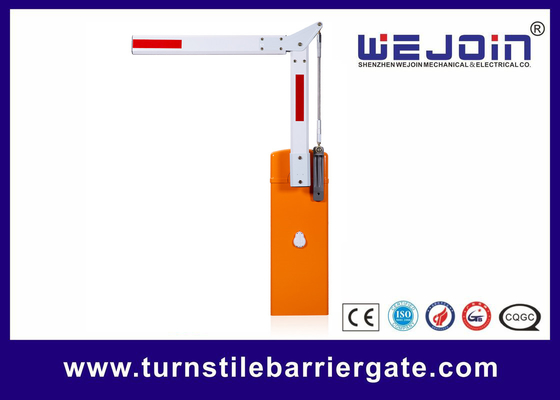

90-degree folding arm auto parking lot entrance barrier gate
Parking Barrier Gate Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime
Parking Barrier Gate Application
Suitable for indoor as well as the outdoor parking area
Parking lots, goods yards, hospitals, stadiums, business centers, etc.
Parking Barrier Gate Quick Detail
DC Brushless Servo Motor
Higher Stability, Longer Service Life, and Easier Operation
Model |
WJDZ04SV1 (speed 3~5s adjustable) |
|||||
Running Speed |
3S |
4S |
5S |
5S |
5S |
5S |
Boom-Type |
Straight |
Straight |
Straight |
90° Folding |
2 Fence |
3 Fence |
Max Boom Length |
4.5M |
5M |
6M |
5M |
4.5M |
4M |
Model |
WJDZ04SV2 (speed 1.5~5s adjustable) |
|||||
Running Speed |
1.5s |
2/3/4/5s |
5s |
5s |
5s |
|
Boom-Type |
Straight |
Straight |
90° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3.5m |
4.5m-6m |
4m |
4.5m |
4m |
Parking Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display displays more information.
10). NO/NC wire control signal inputs are optional.
11). Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added.
