Automatic car parking lot access control entrance boom barrier gate
Quick Detail
WEJOIN Mid-Grade Servo Barrier Gate WJDZ04SV
DC Brushless Servo Motor
Higher Stability, Longer Service Life
Parking Barrier Gate Brief Introduction
Newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably.
WEJOIN Main Advantages
1. Global leading manufacturer for barrier gate.
2. Mater of core technology and innovation.
3. Intelligent quality manufacture and automatic flexible production.
4. Global advanced manufacturing process and testing equipment.
5. Servo, bi-direction motor and other leading technique.
Parking Barrier Gate Application
Suitable for indoor as well as outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Parking Barrier Gate Functions
1). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
2). Double tension spring crank transmission design, for more stable and reliable structure.
3). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
4). More sensitive and reacting faster when reversing on obstacles.
5). With counting, delay auto-closing, and auto-aging test function.
6). 4-digit digital tube display, displays more information.
7). NO/NC wire control signal input are optional.
8). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.
Parking Barrier Gate Technical Data
Model |
WJDZ04SV1 (speed 3~5s adjustable) |
|||||
Running Speed |
3S |
4S |
5S |
5S |
5S |
5S |
Boom Type |
Straight |
Straight |
Straight |

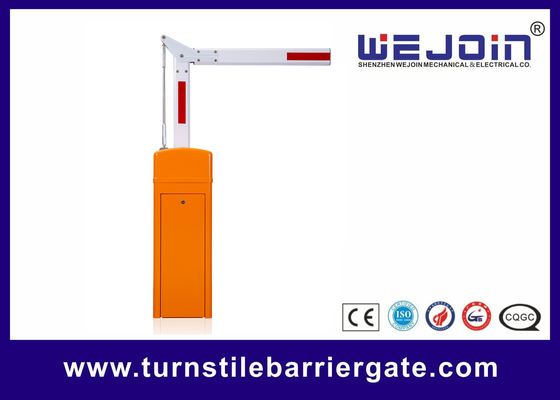

90° Folding |
2 Fence |
3 Fence |
Max Boom Length |
4.5M |
5M |
6M |
5M |
4.5M |
4M |
Model |
WJDZ04SV2 (speed 1.5~5s adjustable) |
|||||
Running Speed |
1.5s |
2/3/4/5s |
5s |
5s |
5s |
|
Boom Type |
Straight |
Straight |
90° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3.5m |
4.5m-6m |
4m |
4.5m |
4m |
|
Housing Dimension |
362*325*1030mm |
|||||
Input Voltage |
AC220V±10%,AC110V±10% |
|||||
Frequency |
50/60HZ |
|||||
Motor Voltage |
DC310V |
|||||
Enclosure Rating |
IP54 |
|||||
Working Temperature |
-35°C~+85°C |
|||||
MTBF |
5000000 times |
|||||
Traffic Flow Application |
3000 times/24hours |
|||||
Max Motor Power |
150W |
|||||
Max Motor Speed |
24r/min |
|||||
Max Torque |
240N.m |
Parking Barrier Gate Packing List
Name |
Specification |
Quantity |
Unit |
Application |
Screw, Nuts, Flat Pad |
M12*70 |
2 |
sets |
Fixing the boom |
Boom Fixing Bar |
|
1 |
pcs |
Fixing the boom |
Boom Holder Plastic Cover |
|
1 |
sets |
Optional |
Cabinet Fixing Bar |
|
2 |
pcs |
Fixing the boom |
Expansion Screws |
M16*150 |
4 |
sets |
Fixing the boom |
Support Post |
|
1 |
pcs |
Optional |
Radio Emitter |
|
1 |
pcs |
Optional |
Keys |
|
2 |
pcs |
For cabinet door |
Remote Controller |
|
2 |
pcs |
|
Manual |
|
1 |
pcs |
