3 - 5s Adjustable Speed Parking Lot Barrier Gate Straight Fence Folding Arm

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ04SV
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor: Die Casting Aluminum Alloy Speed: 3~5s Adjustable
Power: 150W Voltage: AC220V; AC110V
Application: Parking Lot Boom Length: Max 6M (customized)
High Light:

Adjustable Speed Parking Lot Barrier Gate

,

DC Servo Parking Lot Barrier Gate

,

150W Parking Entrance Barrier


Product Description

Straight / fence / folding arm automatic parking boom barrier gate



Parking Barrier Gate Functions & Features
1). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
2). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
3). Double tension spring crank transmission design, for more stable and reliable structure.
4). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
5). More sensitive and reacting faster when reversing on obstacles.
6). With counting, delay auto-closing, and auto-aging test function.
7). 4-digit digital tube display, displays more information.
8). NO/NC wire control signal input are optional.



Parking Barrier Gate Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably.



Parking Barrier Gate Application

Suitable for indoor as well as outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises,
business centers, etc.



Parking Barrier Gate Technical Data

Model

WJDZ04SV1 (speed 3~5s adjustable)

Running Speed

3S

4S

5S

5S

5S

5S

Boom Type

Straight

Straight

Straight

90° Folding

2 Fence

3 Fence

Max Boom Length

4.5M

5M

6M

5M

4.5M

4M

Model

WJDZ04SV2 (speed 1.5~5s adjustable)

Running Speed

1.5s

2/3/4/5s

5s

5s

5s

Boom Type

Straight

Straight

90° Folding

2 Fence

3 Fence

Max Boom Length

3.5m

4.5m-6m

4m

4.5m

4m

Housing Dimension

362*325*1030mm

Input Voltage

AC220V±10%,AC110V±10%

Frequency

50/60HZ

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C~+85°C

MTBF

5000000 times

Traffic Flow Application

3000 times/24hours

Max Motor Power

150W

Max Motor Speed

24r/min

Max Torque

240N.m

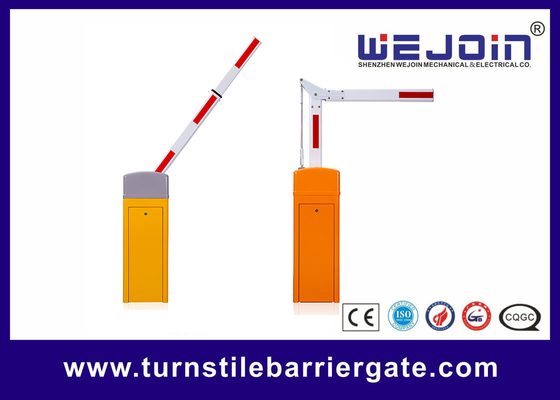

3 - 5s Adjustable Speed Parking Lot Barrier Gate Straight Fence Folding Arm 0
