Bi Directional 6M Straight Boom Entrance Barrier Gate

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01SV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom Housing Color: Orange
Application: Parking Lot Speed: 1-2s/3-5s Speed Adjustable
Boom Length: Max 6M (customized) Arm Material: Aluminum Alloy
High Light:

Bi Directional Traffic Barrier Gate

,

6M Boom Barrier Gate


Product Description

Boom automatic parking system barrier gate

Quick Detail:
The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.
# Strong moment, high precision control, low-temperature rise
# Standard traffic lights
# 1-2s/3-5s speed adjustable

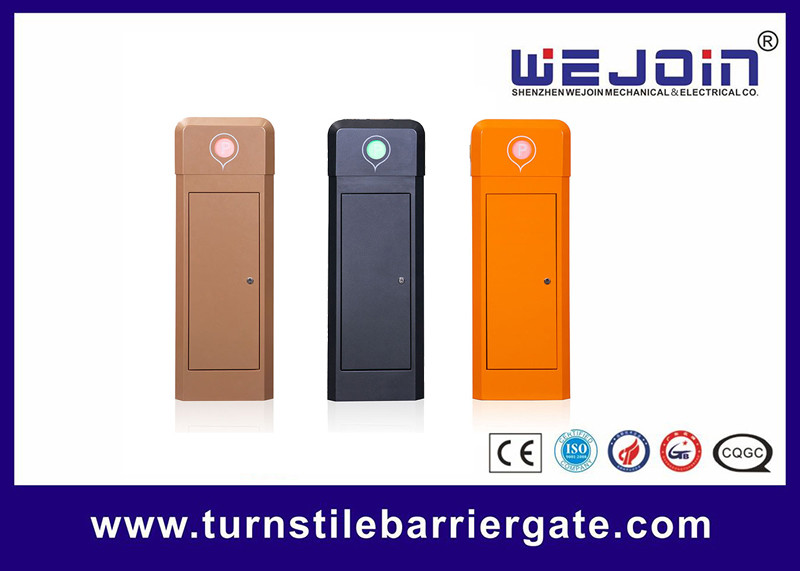

# gold, black and orange color optional


Vehicle Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display displays more information.
10). NO/NC wire control signal input is optional.
11). Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Vehicle Barrier Gate Technical Data

Model

WJCB01SV-H

WJCB01SV-I

Running Speed

1/1.5/2S

3/4/5S

5S

5S

5S

5S

Boom-Type

Straight

Straight

90° Folding

180° Folding

2 Fence

3 Fence

Max Boom Length

3.5M~4.5M

4.5M~6M

5M

4M

4.5M

4M

Input Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C ~ +85°C

MTBF

6000000 times

Traffic Flow Application

24 hours of uninterrupted operation

Max Motor Power

150W

Max Motor Speed

36r/min

Max Torque

240N.m



Mechanism Structure

Bi Directional 6M Straight Boom Entrance Barrier Gate 0
