|Place of Origin:||CHINA|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 set|
|Delivery Time:||3-5 working days after payment received|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||10000 sets/month|
|Motor:||Die Casting Aluminum Alloy||Speed:||3~5s Adjustable|
|Application:||Parking Lot||Warranty:||1 Year|
Rfid Parking Space Barrier,
Aluminum Arm Vehicle Barrier Gates

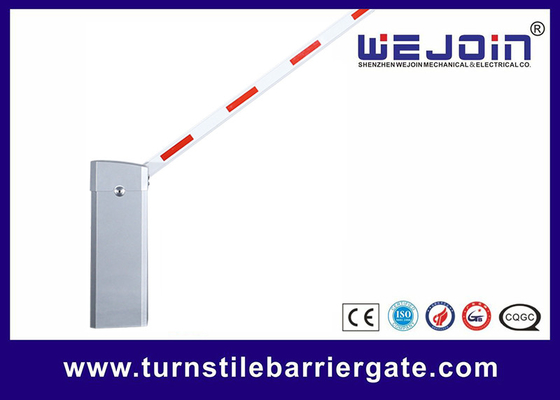

Automatic RFID electronic security LED boom parking aluminum arm barrier gate
Parking Barrier Gate Brief Introduction
It utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operates more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.
Parking Barrier Gate Technical Data WJDZ04SV2
|Model||WJDZ04SV2 (speed 1.5~5s adjustable)|
|Boom-Type||Straight||Straight||90° Folding||2 Fence||3 Fence|
|Max Boom Length||3.5m||4.5m-6m||4m||4.5m||4m|
|Traffic Flow Application||3000 times/24hours|
|Max Motor Power||150W|
|Max Motor Speed||24r/min|
Parking Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
Parking Barrier Gate Application
Indoor as well as an outdoor parking area
parking lots, goods yard, railway crossing, commercial premises, hospitals, stadiums, business centers, etc.
