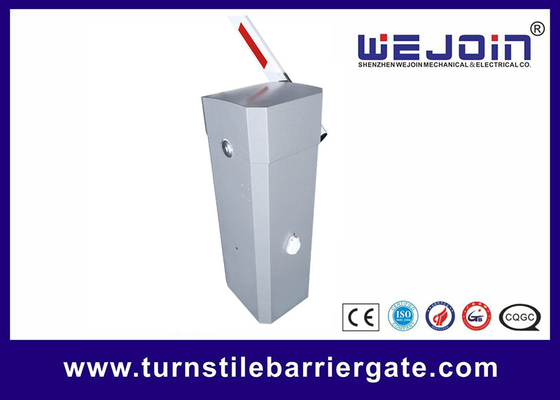

Round Rod Expressway Servo DC Vehicle Barrier Gates

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ04SV
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor: Die Casting Aluminum Alloy Speed: 3~5s Adjustable
Power: 150W Voltage: AC220V; AC110V
Application: Parking Lot Warranty: 1 Year
High Light:

Round Rod Security Barrier Gate

,

Expressway Servo DC Boom Barrier


Product Description

Fast Speed Expressway Servo DC Barrier gate



Technical Data:

1.Working Temperature: -35℃~+85℃

2. Input Voltage: 220VAC±10%, 110VAC±10%

3. Max Motor Power: 150W

4. Humidity: ≤90%

5. The Distance of Remote Control: ≥30m

6. Insulation Grade: F

7. Running Speed and Max Boom Length:

DZ04SV1: 3/4/5S, max boom length: 6m straight boom, 4.5m two-fence boom, 4m three-fence boom

DZ04SV2: 1.5/2/3/4/5S, max boom length: 6m straight boom, 4.5m two-fence boom, 4m three-fence boom.



Parking Barrier Gate Functions & Features

1). MTBF: more than 4 million opening and closing cycles
2). Mid-speed DZ04SV1: 3-6s adjustable, fast-speed DZ04SV2: 1.5-5s adjustable
3). large torque, high precise control, less motor heat
4). support 24-hour continuous operation without downtime

5). hand clutch device
6). alarm against abnormal lifting boom
7). left-installation and right-installation can be exchanged
8). speed will reduce when the boom moves to the limit position.

9). menu function display controller
10). RS485 communication
11). TCP/IP network port can be added
12). A DC12V power supply is optional



DZ04SV1 Series Boom Length and Speed Selection

Model

DZ04SV1 (3-6S)

Boom-Type

2 Fence Boom

3 Fence Boom

Boom Length

≤4.5M

4M

Running Speed

6S

6S

Boom Length (Meters: M)

Speed (Seconds: S)



FAQ

Q1: where is our port of shipment?
A: Shenzhen, China or according to our choice

Q2: If I want to visit your factory, which is the nearest international airport or domestic airport?
A: Shenzhen Baoan airport is the nearest airport, we will make a special car to receive you at the airport or hotel

Q3: Which is your min order?
A: 1 piece

Q4: What are your payment terms?
A: T/T or western union

Q5: Model color size and craft for all barrier gates can be customized?
A: Yes, we can, welcome OEM&ODM. We also can put the logo of your company on the product

Q6: Do you have a warranty and aftersales service?
A: mostly product with a 1-year warranty and best aftersales service
