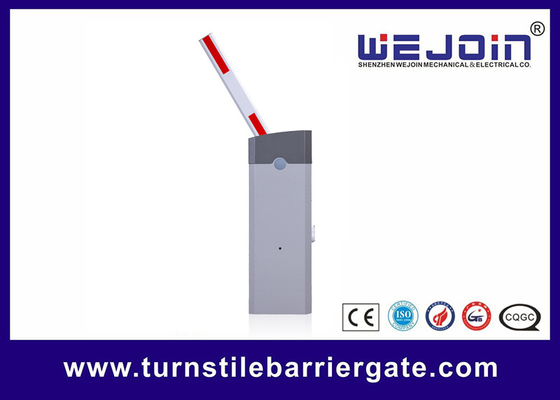

DC 12V Power Supply 150W PMSM Electronic Barrier Gates

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ04SV
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor: Die Casting Aluminum Alloy Speed: 3~5s Adjustable
Power: 150W Voltage: AC220V; AC110V
Application: Parking Lot Warranty: 1 Year
High Light:

150W Automatic Barrier Gates

,

PMSM Parking Lot Barrier


Product Description

Electronic Security Barrier Gates Automatic Barrier



Functions & Features

1. DC permanent magnet synchronous motor (PMSM), servo control.

2. The motor has the same performance as the main motor of the CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.

3. Double extension spring crank transmission design, for a more stable and reliable structure.

4. No limit switch design, accurate encoder detection, detecting boom position when power on.



Packaging Details

Packing:

Housing size: length : 34 cm wide:29 cm height :94 cm
Package size: length :39 cm wide:33 cm height :105 cm
240 sets/container

Port:

Shenzhen

Lead Time:

7 working days after received 30% deposit



Technical Data:

1.Working Temperature: -35℃~+85℃

2. Input Voltage: 220VAC±10%, 110VAC±10%

3. Max Motor Power: 150W

4. Humidity: ≤90%

5. The Distance of Remote Control: ≥30m

6. Insulation Grade: F



WEJOIN Profile

Founded in March 2004, Shenzhen WEJOIN Mechanical & Electrical Co. is a national high-tech enterprise specialized in R&D, production and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including high-end commercial servo barrier gate, high-end servo barrier gate, mid-end servo barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicle and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
