| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJDZ04SV |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Motor: | Die Casting Aluminum Alloy | Speed: | 3~5s Adjustable |
|---|---|---|---|
| Power: | 150W | Voltage: | AC220V; AC110V |
| Application: | Parking Lot | Warranty: | 1 Year |
| High Light: | AC110V Parking Lot Barrier Gate,150W Parking Lot Barrier Gate,Anti Collision Toll Barrier Gate |
||

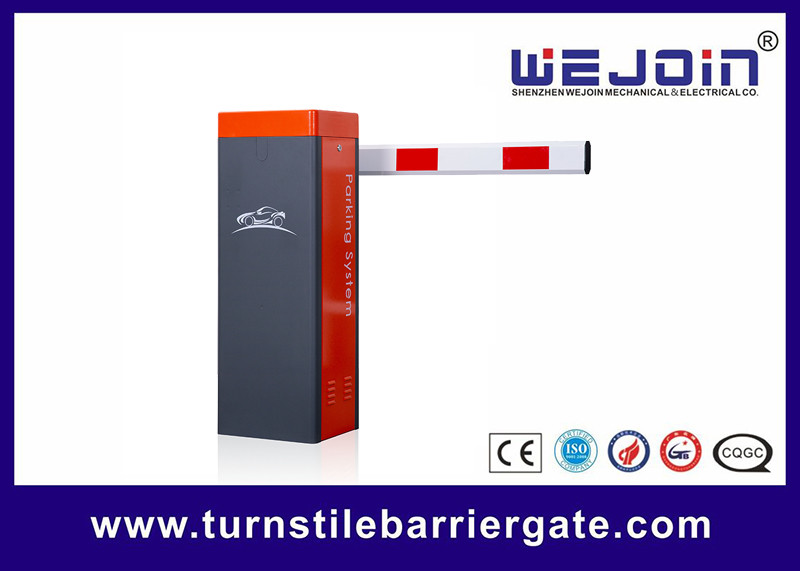

parking lot barrier gate with anti-collision protection function
Application
Suitable for indoor as well as the outdoor parking area at the airport, shopping mall, warehouse, hotel, factories, condominium, car rental companies, etc. It can also, be customized to be used together with any auto-pay ticketing parking or access control system.
Quick details:
The WJDZ04SV servo barrier gate series, which manufactured by our company, adopts international advanced technology, mechanical, and electrical integrated design. Planet gear drive, high torque, un-blocked, oil-tight, no noise, automatically Self-locked when power off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), apply to the global voltage, high-speed operation and rapid response, frequent positive &negative operation in 24 hours does not heat, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance achieves full automation and intelligence, and the barrier arm open/close is fast and smooth, easy to use, and safe.
Functions and Features
1. Gate automatically opens when power off, no clutch design, no need human intervention. When power on, the gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If a special requirement, manual operation is required when power off, operating arm open and close manually also can be realized by setting up a control board DIP switch, which ensures that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe, and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
Technical Data:
|
Working Temperature |
-35℃~+85℃ |
|
Input Voltage |
220VAC±10%, 110VAC±10% |
|
Max Motor Power |
150W |
|
Humidity |
≤90% |
