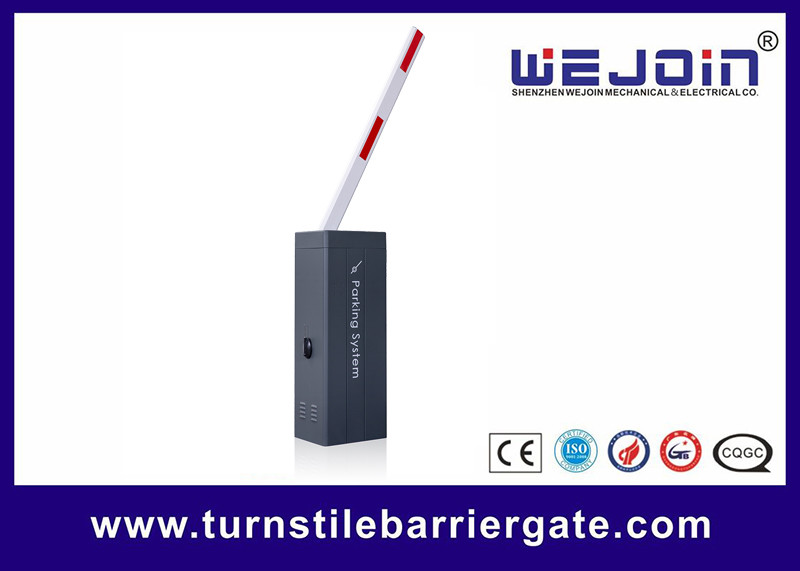

1.8-6S Speed Adjustable DC Brushless boom barrier gate DC310V

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E20
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom Voltage: AC 110V Or 220V
Boom Length: Max 6M (customized) Warranty: 2 Year
Housing Color: Yellow-green Application: Parking Solution
High Light:

Speed Adjustable Boom Barrier Gate

,

DC Brushless Boom Barrier Gate

,

6S Parking Lot Barrier Gate


Product Description

1.8-6S speed adjustable DC Brushless Servo Motor Vehicle Barrier Gate



The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.

# Strong moment, high precision control, low-temperature rise

# Standard traffic lights

# 1.8-6S speed adjustable


DZE Series Boom Length and Speed Selection
Model WJDZE1 (speed 1.8~6s adjustable)
Running Speed 1.8s 3S 4S 5/6S 5/6S 5/6S
Boom-Type Straight Straight Straight Straight 90° Folding 180° Folding
Max Boom Length 4m 4.5M 5M 6M 5M 4M

Vehicle Barrier Gate Technical Data
Input Voltage: AC220V±10%, AC110V±10%
Frequency: 50/60HZ
Motor Voltage: DC310V
Enclosure Rating: IP54
Working Temperature: -35°C ~ +85°C
MTBF: 3 million times
Traffic Flow Application: 24 hours of uninterrupted operation
Max Motor Power: 120W
Max Motor Speed: 24r/min
Max Torque: 240N.m



WEJOIN Profile
Founded in March 2004, Shenzhen WEJOIN Mechanical & Electrical Co. is a national high-tech enterprise specialized in R&D, production and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including high-end commercial servo barrier gate, high-end servo barrier gate, mid-end servo barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicle and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.



FAQ

1. Do you have an agency for after-sales service?
Any questions about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact us to have face time to solve it.

2. What time do you need to deliver?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends on the order quantity. We could talk about this question before the final payment.
