| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | E20 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Straight Boom | Voltage: | AC 110V Or 220V |
|---|---|---|---|
| Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
| Housing Color: | Yellow-green | Application: | Parking Solution |
| High Light: | DC Brushless Vehicle Barrier Gate,Adjustable Parking Vehicle Barrier Gate,6m Boom Automatic Vehicle Barrier |
||

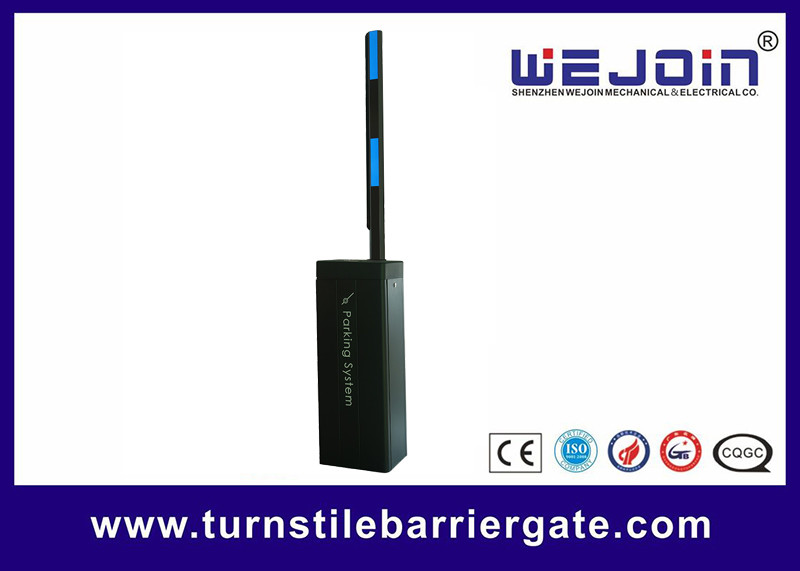

DC brushless Servo motor Speed adjustable parking vehicle barrier gate
Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operates more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime
Features
1.Easy Integration
Access Reader or Push button or remote controller can be used to trigger the barrier gate open via a simple dry contact signal. After the delay timer elapsed, the barrier gate will close automatically by itself in a certain time (optional function).
2.User Friendly
Motorized arms provide comfortable passage while maintaining a high level and high density of car flow management, such as in toll gate.
3.Emergency
Our barrier gate control board has an emergency interface left for the emergency signal. The barrier will open in case of the signal lasting.
4.Auto-Recovery
When power off, barrier arm can be lifted up by manual for a free exit. When the power supply is restored, the barrier gate will automatically return to their normal operating position.
| Input Voltage | AC220V±10%, AC110V±10% | |||||||
| Frequency | 50/60HZ | |||||||
| Motor Voltage | DC310V | |||||||
| Enclosure Rating | IP54 | |||||||
| Working Temperature | -35°C ~ +85°C | |||||||
| MTBF | 3 million times | |||||||
| Traffic Flow Application | 24 hours of uninterrupted operation | |||||||
| Max Motor Power | 120W | |||||||
| Max Motor Speed | 24r/min | |||||||
| Max Torque | 240N.m | |||||||
FAQ
1. Are you a Trade company or manufacturer for a barrier gate?
--------We are a manufacturer, welcome to visit our factory and welcome to OEM.
2. Sometimes, Why the barrier boom would open automatically?
-------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch.
Please refer to the last page of the Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
3. How long the Remote-control distance?
-------- In general, most of 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. we recommend using the remote control within 30 meters or 50 meters.
