| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | E20 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Straight Boom | Voltage: | AC 110V Or 220V |
|---|---|---|---|
| Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
| Housing Color: | Yellow-green | Application: | Parking Solution |
| High Light: | Automatic Straight Arm Parking Barrier,AC110V Straight Arm Parking Barrier,Waterproof Parking Lot Barrier Gate |
||

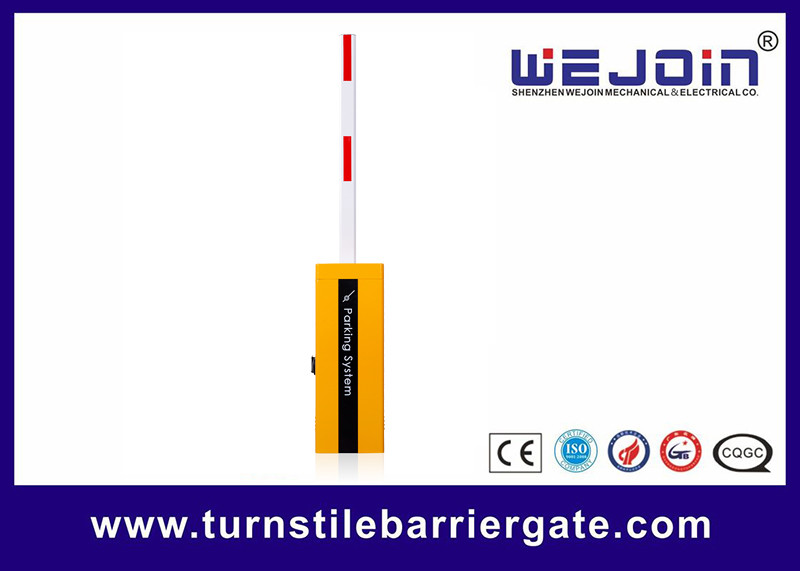

Automatic straight arm parking barrier parking Lot access control vehicle barrier gate
Vehicle Barrier Gate Applications:
station
highway tollgate
high-grade residential area
commercial parking lots
enterprises and institutions
commercial Plaza
Features
1. The box is waterproof, durable, and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.
2. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to
high-temperature hot-melt baking, scrubbing, and anti-UV quality, ensuring no fading for about three years.
3. This system can be equipped with a soft hose to prevent crashes, as well as other protective equipment such as air pressure waves so that the system has anti-smashing functions.
4. A variety of control methods are available for users to choose from. Both external wired and remote control can be used to control the rise/lower/stop of the gate.
5. The use of multiple protection measures (heater protection, low-temperature protection, wind protection, anti-electricity
protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.
6. Integrating electricity and mechanical control, flexible operation, convenient, and reliable.
Specification
|
Input Voltage |
AC220V±10%,AC110V±10% |
|
Frequency |
50/60HZ |
|
Motor Voltage |
DC310V |
|
Enclosure Rating |
IP54 |
|
Working Temperature |
-35°C~+85°C |
|
MTBF |
3 million times |
|
Max Motor Power |
120W |
|
Max Motor Speed |
24r/min |
|
Max Torque |
240N.m |
|
Application |
Indoor/ outdoor |
FAQ
1.About the installation
We provide the manual to help you to install our turnstile. Any help will be provided to meet your needs.
2.About the delivery time
5-7 days after payment received
3.About the term of delivery
Support EXW, FOB, etc.
