| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | DZ201S |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Straight Boom | Housing Color: | Red And White |
|---|---|---|---|
| Application: | Parking Lot | Speed: | 1-2s/3-6s Speed Adjustable |
| Boom Length: | Max 6M (customized) | Arm Material: | Aluminum Alloy |
| High Light: | Automatic Straight Boom Barrier Gate,LED Display Boom Barrier Gate,6s Automatic Parking Gate Barrier |
||

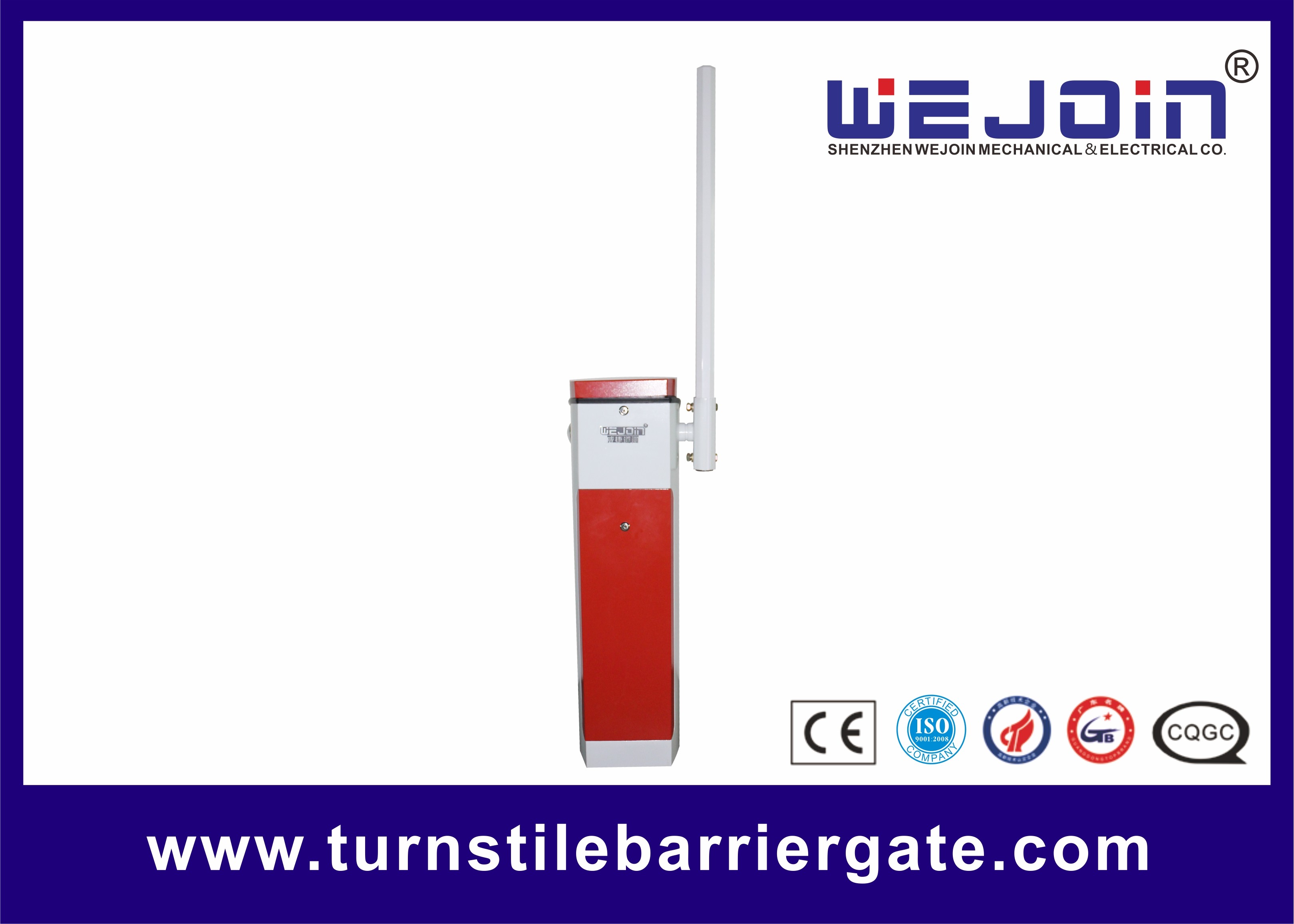

New Design Automatic Parking Equipment Boom Barrier Gate for Parking
Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
4.Rated power 120W
5.Relative humidity ≤90%
6.Remote control ≥30M
7.Net weigh 60 Kg
8. Max boom length:6m
9. Motor rotational speed:6s
Functions and features
Unique appearance, nice color accomplish the modernizing housing
1.Manual release to adjust the machine when power off
2.Machine core with compression spring effectively avoids the accidents caused by spring broken.
3.Die-casting aluminum alloy motor, precision, and good at thermal radiating.
4.Motor cooling fan, solving the problem of heat-protection
5.Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6.reversing on obstacle
7.Auto-closing
8.Support the infrared photocell for anti-bumping(optional)
9.support for the external and internal vehicle loop detector
10.traffic light interface
11.wire control(switch signal)/remote control(418Hz)
12.RS485 communicational module to realize the intelligent management for the passing
13.Bi-direction passing can be installed both on the left and right side
14.LED display
15.Integrated LED traffic light
Troubleshooting
| Trouble | Cause | Troubleshooting |
| The barrier can not locate accurately | 1, Distance of limit switch is too large | 1, Adjust the position of the limit switch |
| 2, Limit switch is wrong | 2, Change limit switch | |
| 3, Magnetic-stell’s position is wrong | 3,Re-adjust the position |
