2mm cold roll plate parking barrier arm gate large opening up to 6m
Product information

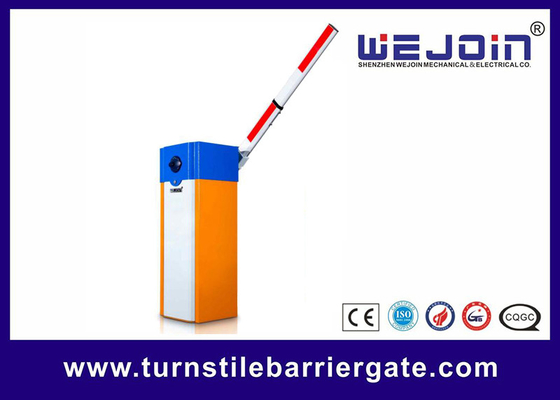

A boom barrier is designed for a range of large openings up to 6m. It is an ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
As a manufacturer, we have more than 18-year experience in designing, producing, and installing boom barriers. The result is a superior boom barrier with the best after-sales service.
Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span.
With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring a perfect user experience.
The left and the right installation
For the client convenience, the following figures are the left and the right installation
For the left installation, the housing installs on the left side of the door, and the arm stretches to the right, the boom is inside the door.
For the right installation, the housing installs on the right side of the door, and the arm stretches to the left, the boom is inside the door.
Specifications
Model |
WJDZ101 |
Working Temperature |
-40℃~+75℃ |
Voltage |
220V±10%, 110V±10%, 50/60HZ |
Rated power |
80W |
Relative humidity |
≤90% |
Remote control distance |
≥30m |
Net weight |
60kgs |
Speed |
1S |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
