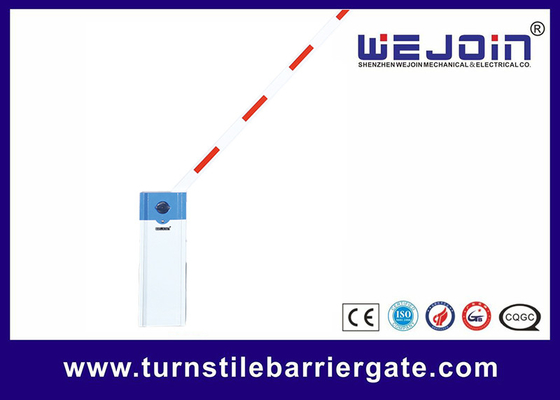

6m Boom Infrared Photocell Parking Barrier Gate 6sec

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ101
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Max Boom Length: 3 Meters Voltage: 110v/220v
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Boom Type: Round Foam Boom COM Interface: RS485
High Light:

6m Boom Parking Barrier Gate


Infrared Photocell Parking Barrier Gate


6sec Building Entrances Barrier Gate

Product Description

Barrier gates with long booms for car parks, building entrances


Parking Barrier Gate

Barrier gates are built with long booms that are used to block entrances of car parks, building entrances, and residential areas.
-The barriers creates a filter for unauthorized personnel
-Create a solution for traffic control
-Improve security to your premises



1.Manual release
2.Machine core with compression spring effectively avoids the accidents caused by spring break.
3.Die-casting aluminum alloy motor, precision, and good at thermal radiating.
4.Motor cooling fan, solving the problem of heat-protection
5.Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6.reversing on an obstacle


8. Support the infrared photocell for anti-bumping(optional)





101-11 101-13 101-16 101-23 101-26
Running time 1sec 3 sec 6sec 3 sec 6 sec
Boom type straight 90-degree folding
Max boom length 3m 4.5m 6m 3m 5m


220V±10%, 110V±10%


50/60 Hz


Service Items
1. The warranty time is one year
2. Offering the lifetime service with a charge
3. Offering the technology support
