| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJDZ101 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Max Boom Length: | 3 Meters | Voltage: | 110v/220v |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Boom Type: | Round Foam Boom | COM Interface: | RS485 |
| High Light: | Round Boom Vehicle Barrier Gate,Foam Boom Vehicle Barrier Gate,Shopping Centers Entrance Barrier Gate |
||

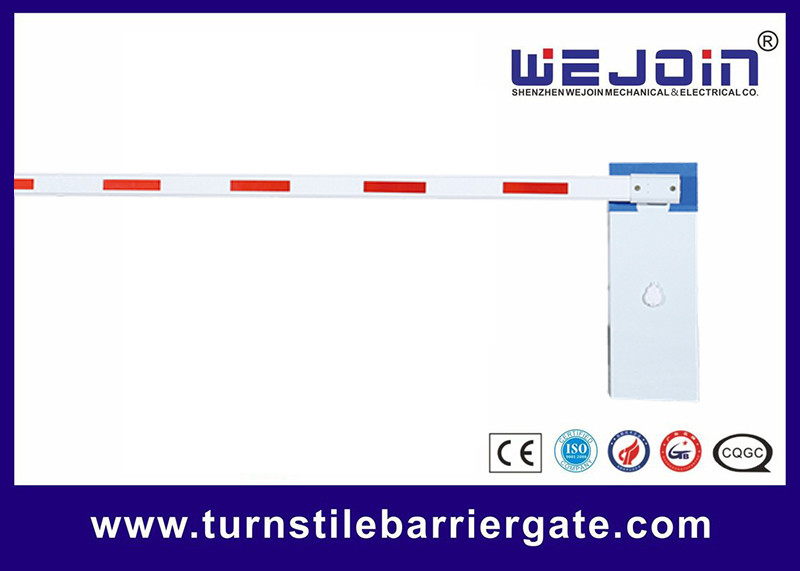

High-performance motor Vehicle Barrier Gate for Shopping Centers
Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
Specifications
|
Model Item |
101-11 | 101-13 | 101-16 |
| Running time | 1sec | 3 sec | 6sec |
| Boom type | straight | ||
The left and the right installation
For the client convenience, the following figures are the left and the right installation
For the left installation, the housing installs on the left side of the door, and the arm stretches to the right, the boom is inside the door.
For the right installation, the housing installs on the right side of the door, and the arm stretches to the left, the boom is inside the door.
The mechanical parts installation
1. Choose the right type of barrier gate for the grounding, and then fix the machine with the expansion bolts.
2. Arm and arm holder installation
insert the bar holder seal into the boom, then fix the bar pressing board with six M8*55mm screws, fasten the arm cover seal to the matching hole with four 4*16mm screws, finally fix the bar holder and bar cover with 3*10mm screws.
3. Clockwise to unlock the clutch, then rise up the arm vertical or pull down the arm horizontal by hand, if there is nothing wrong, then connect the power to operate the machine.
