| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJDZ101 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Max Boom Length: | 3 Meters | Voltage: | 110v/220v |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Boom Type: | Round Foam Boom | COM Interface: | RS485 |
| High Light: | Aluminum Alloy Vehicle Barrier Gate,Ultraviolet Proof Vehicle Barrier Gate,Parking Lot Barrier Gate 6s |
||

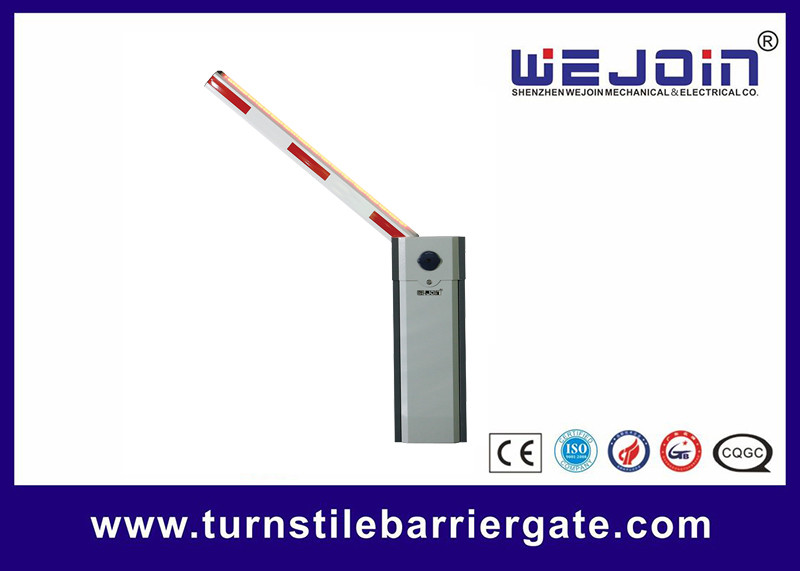

Remote control automatic vehicle barrier gate for parking lot
Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
Barrier Gate Feature:
1. High-performance motor
2. Ultraviolet-proof surface treatment
3. Modular design
4. Laser cutting body
5. High-level waterproof
6. High compatibility
7. Various kinds of color choice
8. Perfect structure design, value every detail in the process of manufacturing.
9. Strict inspection system ensures product quality, to protect customers’ profit based on low failure rate and low maintenance cost.
10. Prompt and professional after-sales service and technical support.
Barrier Gate Specifications
|
Model Item |
101-11 |
101-13 |
101-16 |
|
Running time |
1sec |
3 sec |
6sec |
|
Boom type |
straight |
||
|
Max boom length |
3m |
4.5m |
6m |
The mechanical parts installation
1. Choose the right type of barrier gate for the grounding, and then fix the machine with the expansion bolts.
2. Arm and arm holder installation
insert the bar holder seal into the boom, then fix the bar pressing board with six M8*55mm screws, fasten the arm cover seal to the matching hole with four 4*16mm screws, finally fix the bar holder and bar cover with 3*10mm screws.
3. Clockwise to unlock the clutch, then rise up the arm vertical or pull down the arm horizontal by hand, if there is nothing wrong, then connect the power to operate the machine.
