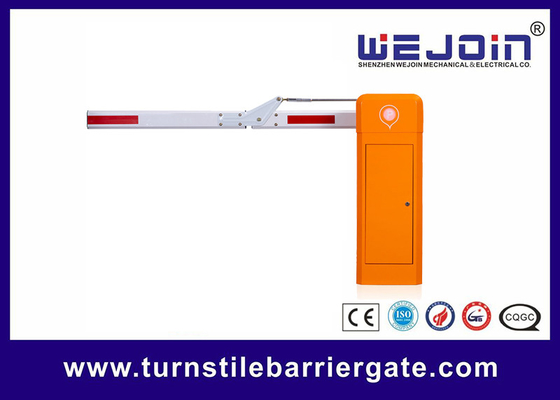

Speed Adjustable Parking Boom Gate Aluminum Arm 2S With Red Adhesive Reflector

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01SV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom Housing Color: White And Blue
Application: Parking Lot Speed: 1-2s/3-5s Speed Adjustable
Boom Length: Max 6M (customized) Arm Material: Aluminum Alloy
High Light:

Red Adhesive Reflector Parking Boom Gate


Speed Adjustable Parking Boom Gate


2S Parking Lot Security Gates

Product Description

Aluminum arm automatic parking gate barrier with red adhesive reflector


Boom Barrier Technical Data
Input Voltage AC220V±10%, AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C ~ +85°C
MTBF 6000000 times
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 150W
Max Motor Speed 36r/min
Max Torque 240N.m
Parking Barrier Gate Functions & Features

1. DC permanent magnet synchronous motor (PMSM) and servo control technology.

2. The motor has the same performance as the main motor of the CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.

3. Double extension spring crank transmission design, for a more stable and reliable structure.

4. Reasonable balance design makes less dependence on spring and easier adjustment and less maintenance.

5. No limit switch design, accurate encoder detection, detecting boom position when power on.

6. Manual clutch design: When power-off, open the manual hand-wheel clutch to move or lock the boom at any position by hand directly. (patented technology)

7). More sensitive and reacting faster when reversing upon obstacles.


Parking Barrier Description:

The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.

# Strong moment, high precision control, low-temperature rise

# Standard traffic lights

# 1-2s/3-5s speed adjustable

# gold, black, and orange color optional


Speed Adjustable Parking Boom Gate Aluminum Arm 2S With Red Adhesive Reflector 0
