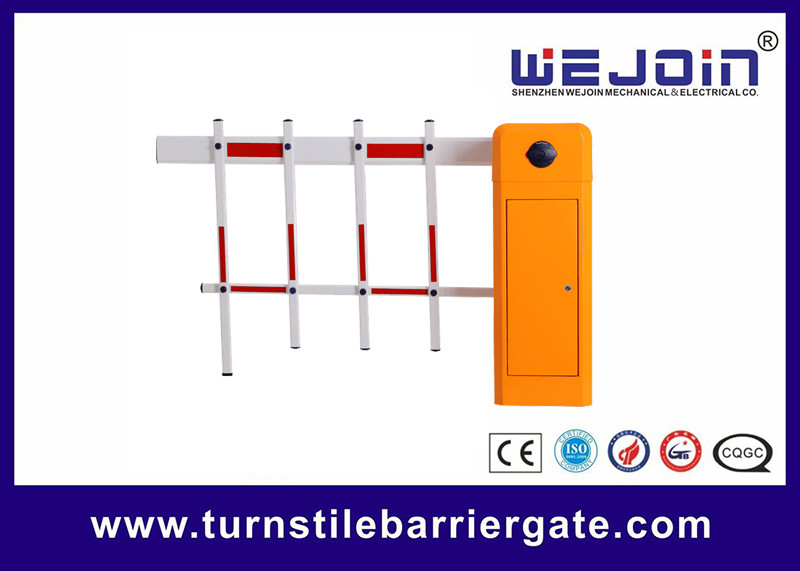

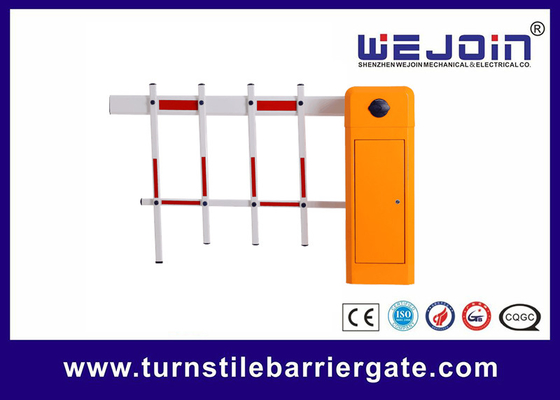

Clutch Security Electric Barrier Gate Manual Release AC110V

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Optional
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes COM Interface: RS485
High Light:

Clutch Security Electric Barrier Gate

,

Manual Release Electric Barrier Gate

,

AC110V Security Boom Barrier


Product Description

Security entrance electric barrier boom gate



Quick Detail:

  1. Name: Crank arm Anti-collision boom barrier Gate
  2. Application: Undergrounding parking
  3. Speed:1s,3s,6s
  4. Feature: Manual release
  5. Rated Power:80W
  6. Certificate: CE, ISO,
  7. Net Weight: 60KG
  8. Voltage: AC220V, AC110V



Functions & Features:

1. RS485 Communication Module is compatible

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Reversing on obstacle

5. Auto closing realization through menu setting on the control panel

6. Manual release device to operate the barrier when power failure

7. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light



Applications:

Traffic Parking Boom Barrier Gate adopts a special machine core, swing away boom holder, and boom. This barrier gate running time is 1s,3s,6s according to customers' requirements. It can be used for underground parking systems, factory gates,bus station,s and so on.



Specifications

Model WJDZ102
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Max boom length 8m
Speed 1S,3s,6s
Net weight 60kgs





Clutch Security Electric Barrier Gate Manual Release AC110V 0
