| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Units / Month |
| Speed: | 1S; 1.8S; 3S; 6S | Color: | Optional |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Max Boom Length: | 8 Metes | COM Interface: | RS485 |
| High Light: | Highway Tollgate Manual Boom Barrier,Fence Arm Manual Boom Barrier,RS485 COM Auto Barrier Gate |
||

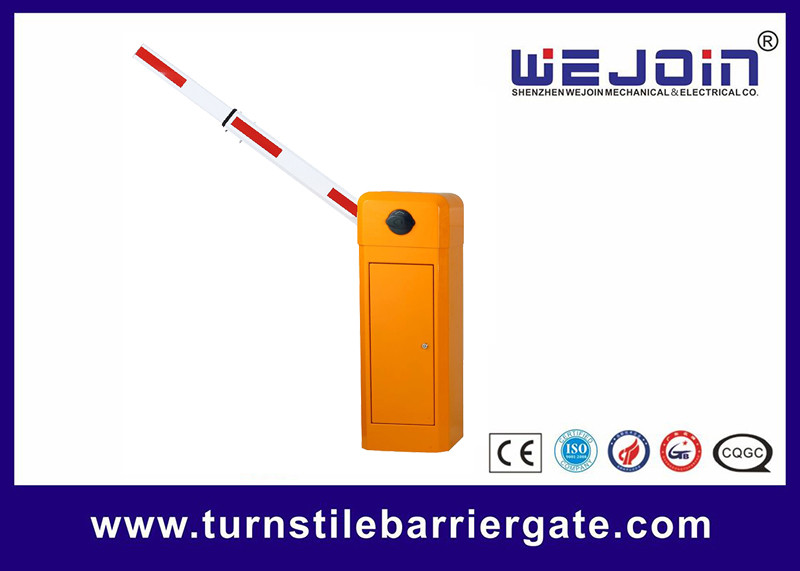

Longest straight, folding, fence arm barrier boom gate for high traffic
Parking Barrier Gate Applications:
station
highway tollgate
high-grade residential area
commercial parking lots
enterprises and institutions
commercial Plaza
Functions & Features:
1. Open the barrier gate by the motor wheel when power is off and automatic locking when power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto-reverse when the boom meets an obstruction
5. Infrared photocells connector is available
6. Loop detector connector is available
7. Well-integrated with car parking system equipment, with wire control (must be switch signal)
8. Connector for a traffic light (AC220V, power less than 40W)
9. Offering dry contact signal for car parking system (COM, NC, NO)
10. Auto-delay when closing (adjustable)
Motor speed and boom type
|
Boom type |
Boom length (M) |
Opening time(S) |
|
Articulated boom, 90 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
|
|
Articulated boom, 180 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
Working environment and data
1. Mechanism temperature: -25℃+85℃
2. Control board temperature: -20+85℃
3. Voltage: 220V±10%, 50HZ or 110V ±10%, 60HZ
4. Rated power: 120W
5. Relative humidity: ≤90%
6. Distance of remote control: 100M＞L≥30M in the open place
7. Net weight: 60 Kg
