| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Units / Month |
| Speed: | 1S; 1.8S; 3S; 6S | Color: | Optional |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Max Boom Length: | 8 Metes |
| COM Interface: | RS485 | Warranty: | 1 Year |
| High Light: | Die Casting Alu Boom Barrier Gate,120W Boom Barrier Gate,RS485 Remote Control Barrier Gate |
||

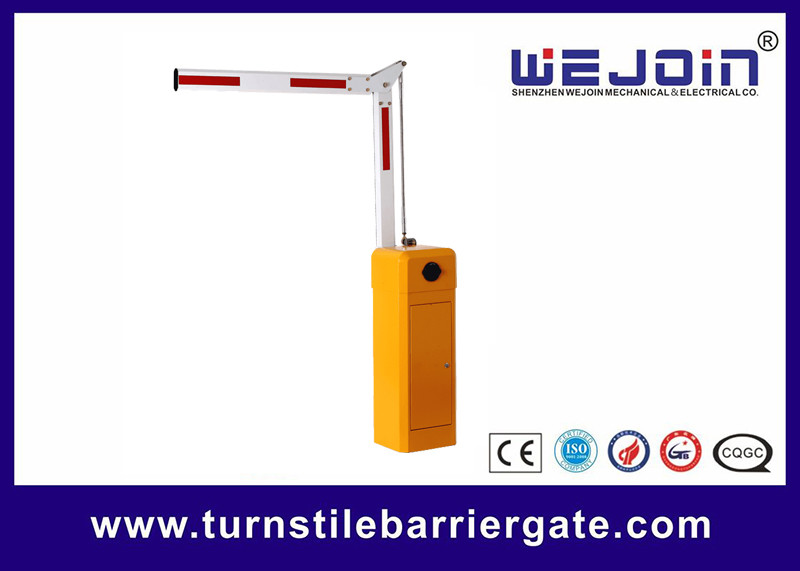

Remote control intelligent 90-degree boom barrier gate
Selection of spring
The spring is stretchable one and the specification is as follows:
| Spring type | Diameter | Spring length |
| Small size | 4.5MM | 280MM |
| Medium size | 5.5MM | 280MM |
| Big size | 6.5MM | 280MM |
Common malfunction and handling
1. The boom has no reaction though the motor is running
Solution: check whether the clutch is lock
2. The boom vibrates too much at its limit position
a. check whether the shock absorption is broken
b. check whether the spring is broken
Product data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz, 110V±10% 50/60 Hz
4. Rated power 120W
5. Relative humidity ≤90%
6. Remote control ≥30M
7. Net weight 60 Kg
Warranty and Service Items
(not includes the barrier boom or remote)
