| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Units / Month |
| Speed: | 1S; 1.8S; 3S; 6S | Color: | Orange |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Max Boom Length: | 8metes | COM Interface: | RS485 |
| High Light: | Anti Collision Vehicle Barrier Gate,Auto Delay Vehicle Barrier Gate,8m Boom Automatic Vehicle Barrier |
||

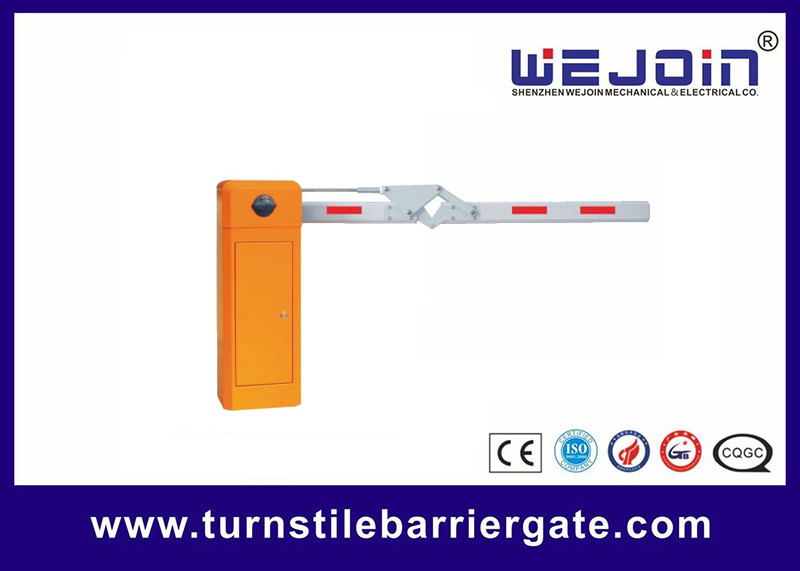

Vehicle barrier gate with humanized anti-collision boom protection function
Functions & Features
1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.
2. Adopts the compression spring for safety precaution to avoid the accidents caused by the spring broken.
3. Three buttons to control the boom to rise up or fall or stop.
4. Auto-reversing when meets obstacles.
5. Available for the internal and external loop detector.
6. Opening, closing, and stopping to control the interface.
Technical Data
|
Model |
102-33 |
102-36 |
|
Running time |
3 sec |
6 sec |
|
Boom type |
180° folding |
|
|
Max Boom length |
3m |
5m |
|
Boom dimension (WxH)mm |
45*100mm |
|
|
Boom weight |
7.9 kg |
13.4 kg |
|
Voltage |
220V±10%, 110V±10% |
|
|
Frequency |
50/60HZ |
|
|
Motor voltage |
AC220V/110V |
|
|
Power |
80W |
|
|
Working Temperature |
-35℃~+75℃ |
|
|
Protection grade |
IP54 |
|
|
MTBF |
5000000 times |
|
WEJOIN's Main Advantages
1. The global leading company for barrier gate
2.Master of core technology and innovation
3.The intelligent quality manufacturing process and automatic flexible production
4.The global advanced manufacturing process and testing equipment
5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7.Integral service network covering first-tier and second-tier cities, and more under the construction service network
